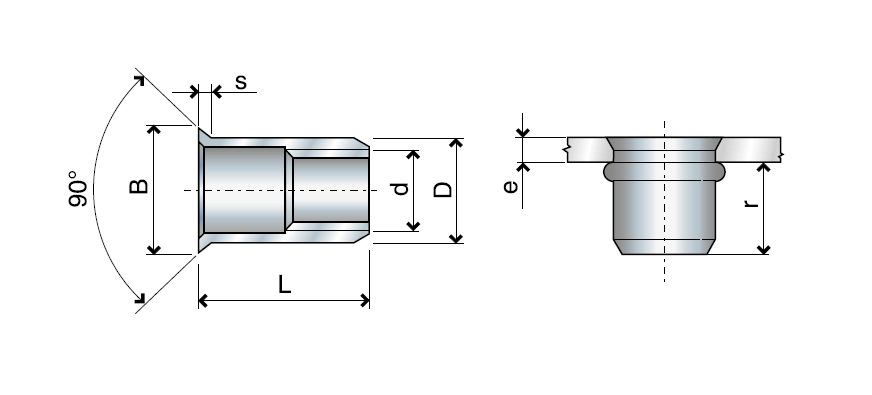

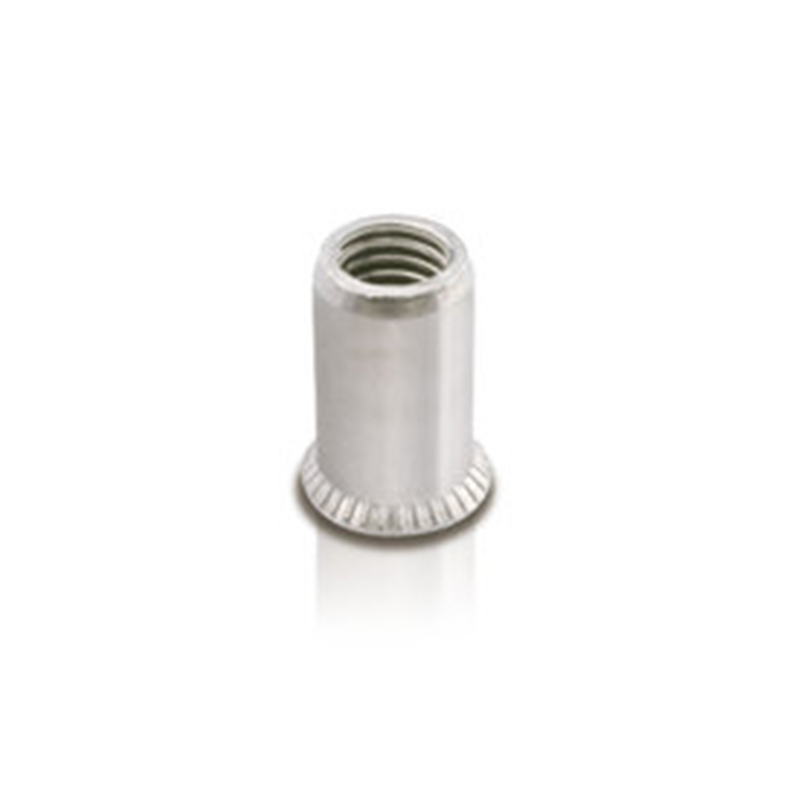

Nut, open, round, aluminium, diameter=6,9, M5, L=13, min. clamping range=1,5
MT107377
Nut manufactured in aluminium of the type open and with undersænket collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 1,5mmand the maximum clamping range is 3,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
10
Shape
Round
Tread size
M5
Collar
Countersunk
Material
AlMg 3KOM5
Material type
Aluminium
r, max.
8,5
S
1,5
Series
FTS/C
Type
Open
Diameter in mm
0
Torque in N.m
5
Hole diameter in mm
7
L
13
Clamping range, min.
1.5
Clamping range, max.
3.8
Tensile strenght, axial
5900
Long description
Nut manufactured in aluminium of the type open and with undersænket collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 1,5mmand the maximum clamping range is 3,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
