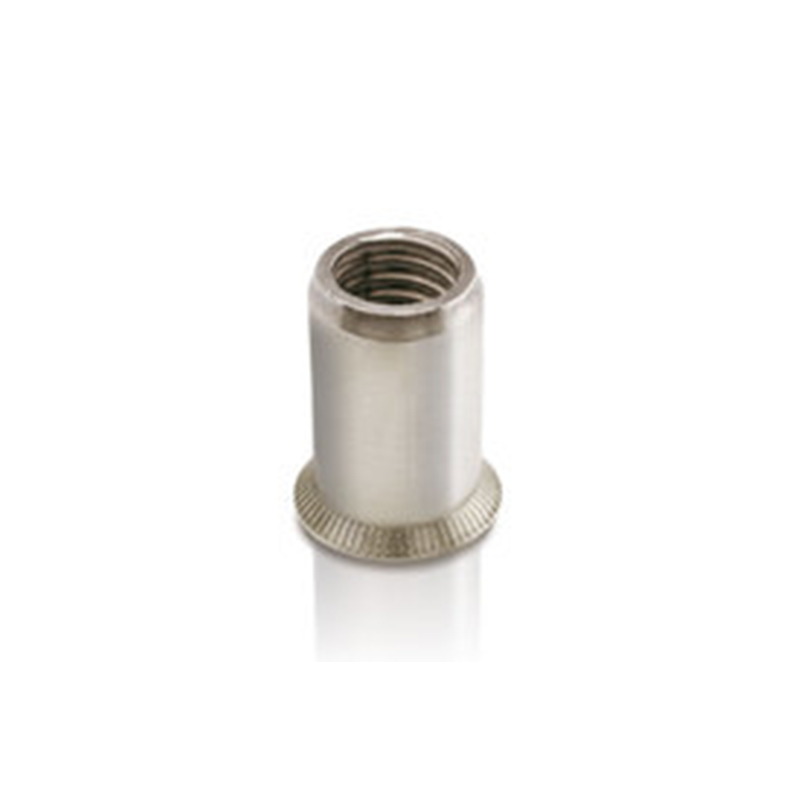

Nut, open, round, stainless steel, diameter=12,9, M10, L=20,5, min. clamping range=3,5
MT107467
Nut manufactured in stainless steel of the type open and with undersænket collar. The diameter is 12,9mm, the length is 20,5mm, and the tread size is M10. The minimum clamping range is 3,5mmand the maximum clamping range is 6mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
16
Shape
Round
Tread size
M10
Collar
Countersunk
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
13
S
1,6
Series
FTS/L
Type
Open
Diameter in mm
0
Torque in N.m
54
Hole diameter in mm
13
L
20.5
Clamping range, min.
3.5
Clamping range, max.
6
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with undersænket collar. The diameter is 12,9mm, the length is 20,5mm, and the tread size is M10. The minimum clamping range is 3,5mmand the maximum clamping range is 6mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
