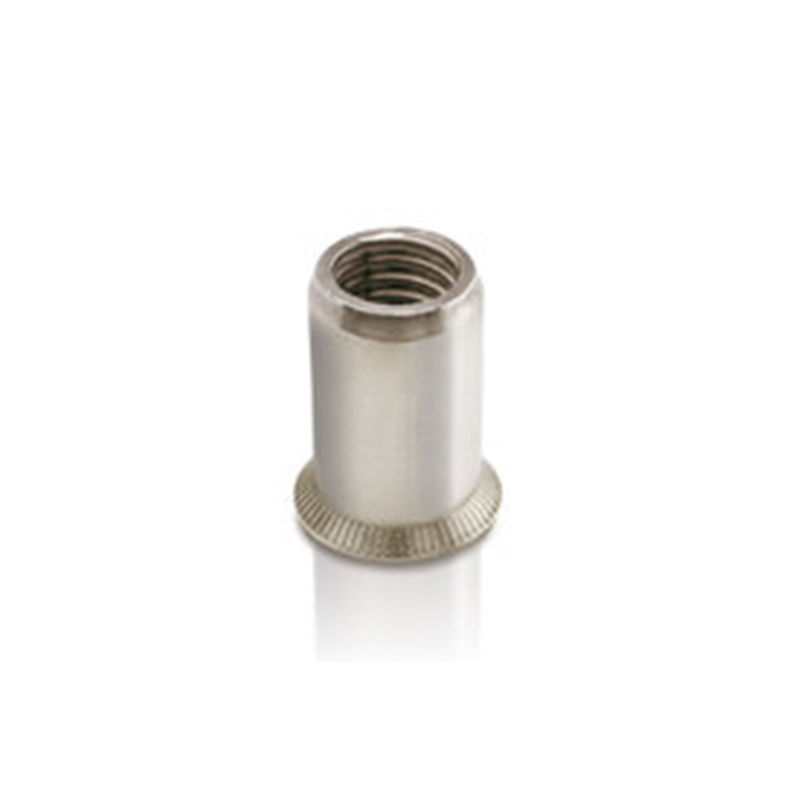

Nut, open, round, stainless steel, diameter=6,9, M5, L=13, min. clamping range=1,5
MT107460

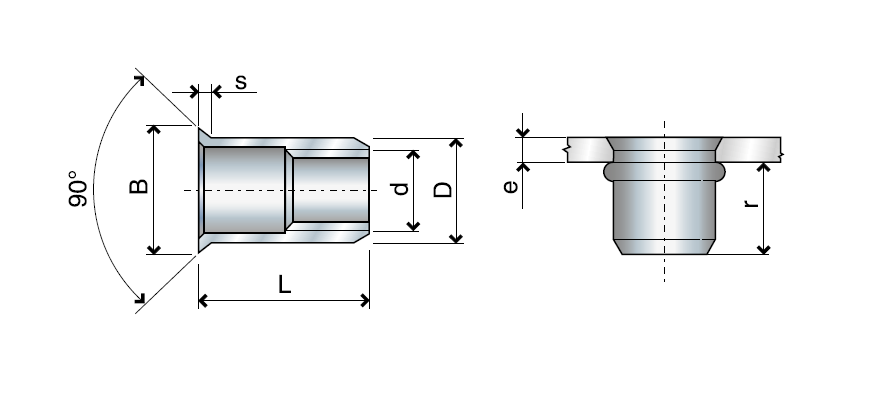

Nut manufactured in stainless steel of the type open and with undersænket collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 1,5mmand the maximum clamping range is 3,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
B
10
Shape
Round
Tread size
M5
Collar
Countersunk
Material
AISI 304 Cu
Material type
Stainless steel
r, max.
8,3
S
1,6
Series
FTS/C
Type
Open
Diameter in mm
0
Drejningsmoment i N.m
14
Hole diameter in mm
7
L
13
Nitteevne, min.
1.5
Nitteevne, max.
3.8
Tensile strenght, axial
0
Long description
Nut manufactured in stainless steel of the type open and with undersænket collar. The diameter is 6,9mm, the length is 13mm, and the tread size is M5. The minimum clamping range is 1,5mmand the maximum clamping range is 3,8mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
