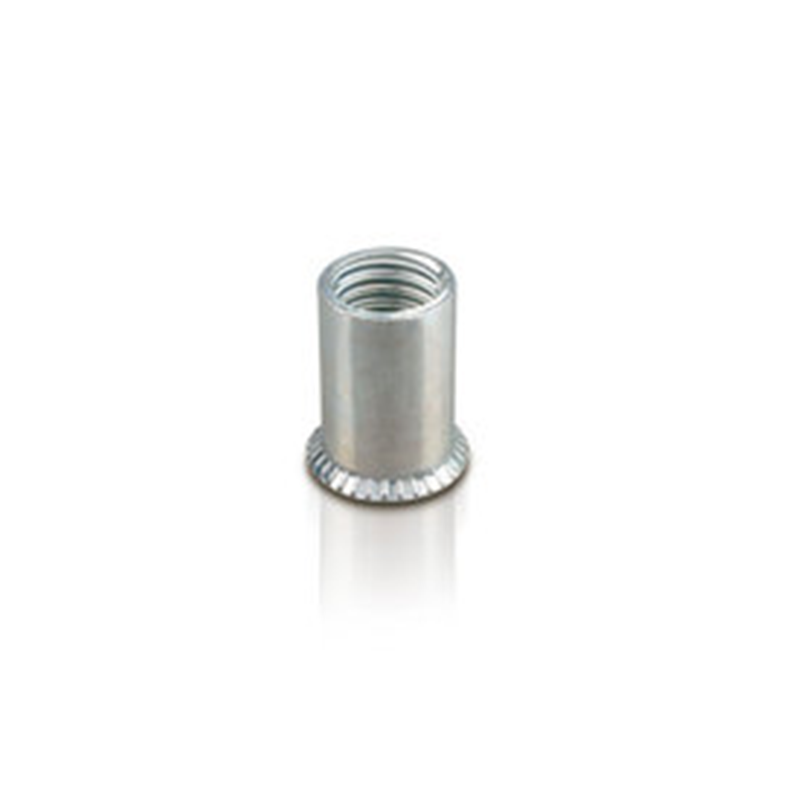

Nut, open, round, steel, diameter=10,9, M8, L=19, min. clamping range=3,8
MT107387
Nut manufactured in steel of the type open and with undersænket collar. The diameter is 10,9mm, the length is 19mm, and the tread size is M8. The minimum clamping range is 3,8mmand the maximum clamping range is 6mm. Special products can be delivered on request, if you cannot find the right product in our standard range.

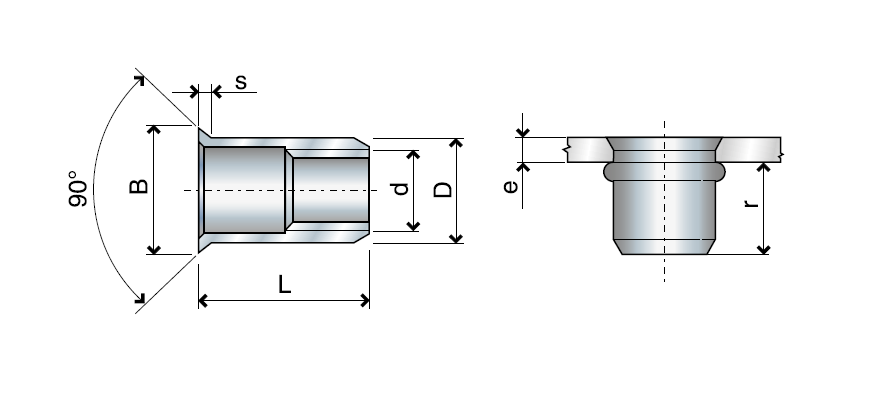

B
14
Shape
Round
Tread size
M8
Collar
Countersunk
Material
C10C
Material type
Steel
Surface finish
Electro zinc plated
r, max.
11,3
S
1,6
Series
FTS/L
Type
Open
Diameter in mm
0
Torque in N.m
24
Hole diameter in mm
11
L
19
Clamping range, min.
3.8
Clamping range, max.
6
Tensile strenght, axial
0
Long description
Nut manufactured in steel of the type open and with undersænket collar. The diameter is 10,9mm, the length is 19mm, and the tread size is M8. The minimum clamping range is 3,8mmand the maximum clamping range is 6mm. Special products can be delivered on request, if you cannot find the right product in our standard range.
