Blind rivet, closed, countersunk, aluminium, D=4,8, L=11,5, clamping range, min.=3
MT106814
Blind rivet manufactured in aluminium of the type closed and with countersunk, the thickness is 5mm. The diameter is 4,8mm, the length is 11,5mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.

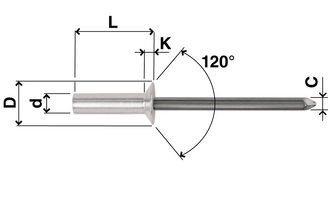

C
2,6
D
9,5
Head
Countersunk
K
2
Material
AlMg 5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Closed
Diameter in mm
4.8
Shear strength
2650
Hole diameter in mm
5
L
11.5
Clamping range, min.
3
Clamping range, max.
6.5
Tensile strenght, axial
2500
Long description
Blind rivet manufactured in aluminium of the type closed and with countersunk, the thickness is 5mm. The diameter is 4,8mm, the length is 11,5mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
