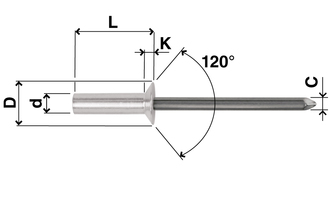

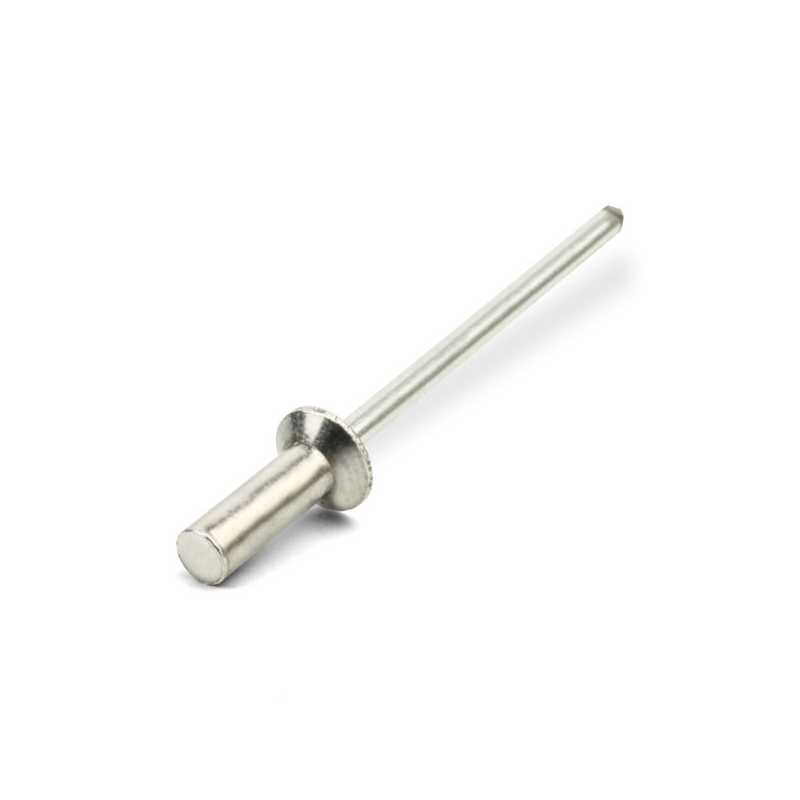

Blind rivet, closed, countersunk, aluminium, D=4, L=9,5, clamping range, min.=3
MT106813
Blind rivet manufactured in aluminium of the type closed and with countersunk, the thickness is 4,1mm. The diameter is 4mm, the length is 9,5mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,2
D
8
Head
Countersunk
K
1,7
Material
AlMg 5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Closed
Diameter in mm
4
Shear strength
1750
Hole diameter in mm
4.1
L
9.5
Clamping range, min.
3
Clamping range, max.
5
Tensile strenght, axial
1950
Nettovægt
0.002
Varekode
8302490099
Lande-/områdekode for oprindelse
IT
Long description
Blind rivet manufactured in aluminium of the type closed and with countersunk, the thickness is 4,1mm. The diameter is 4mm, the length is 9,5mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
