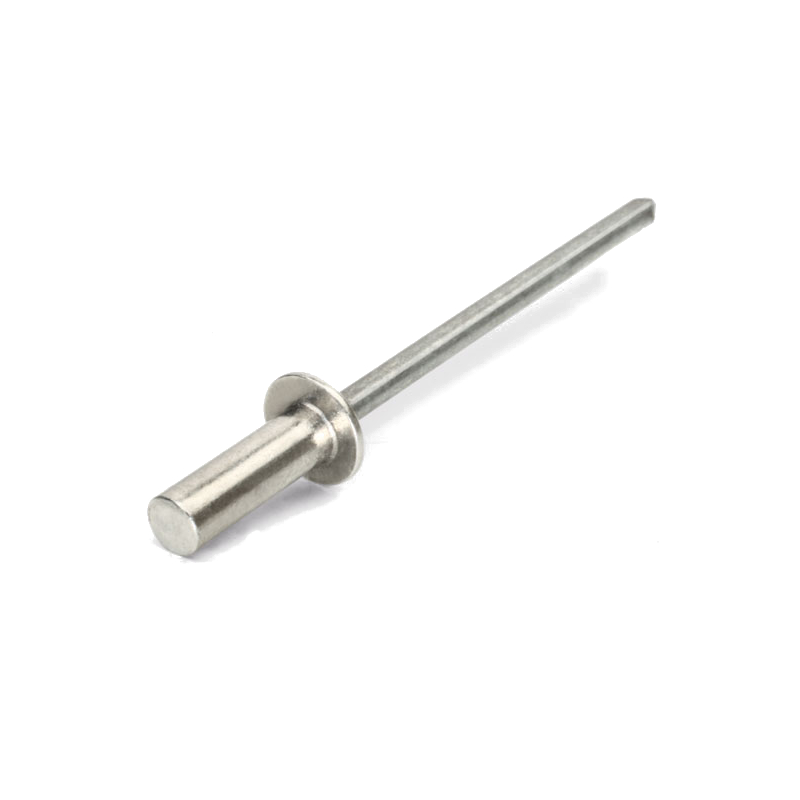

Blind rivet, closed, dome head, aluminium, D=3,2, L=7,5, clamping range, min.=1,5
MT106806
Blind rivet manufactured in aluminium of the type closed and with dome head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 7,5mm and the min.clamping range is 1,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.

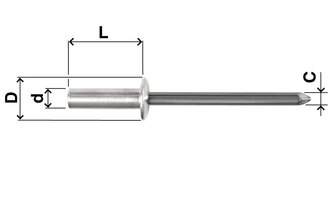

C
1,7
D
6
Head
Dome head
Material
AlMg 5
Material type
Aluminium
Nail material
Steel
Stiftoverflade
Electro zinc plated
Type
Closed
Diameter in mm
3.2
Shear strength
1160
Hole diameter in mm
3.3
L
7.5
Nitteevne, min.
1.5
Nitteevne, max.
3.5
Tensile strenght, axial
1200
Long description
Blind rivet manufactured in aluminium of the type closed and with dome head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 7,5mm and the min.clamping range is 1,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
