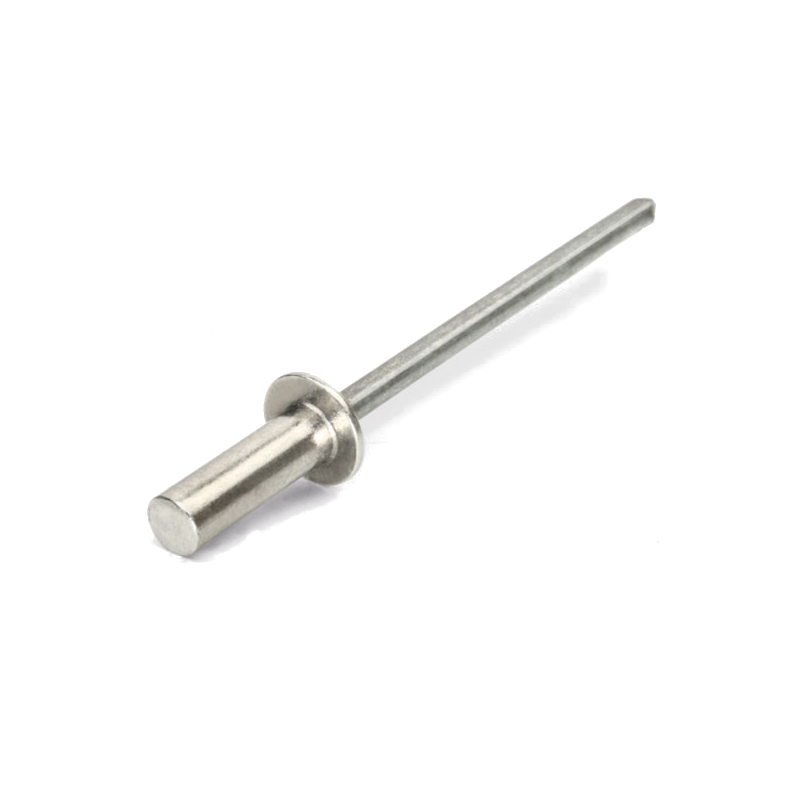

Blind rivet, closed, dome head, aluminium, D=4, L=9,5, clamping range, min.=3,5
MT106817
Blind rivet manufactured in aluminium of the type closed and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 9,5mm and the min.clamping range is 3,5mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.

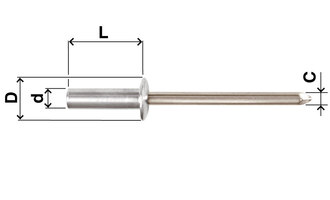

C
2,2
D
8
Head
Dome head
Material
AlMg 5
Material type
Aluminium
Nail material
Stainless steel
Type
Closed
Diameter in mm
4
Shear strength
1750
Hole diameter in mm
4.1
L
9.5
Nitteevne, min.
3.5
Nitteevne, max.
5
Tensile strenght, axial
1950
Long description
Blind rivet manufactured in aluminium of the type closed and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 9,5mm and the min.clamping range is 3,5mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
