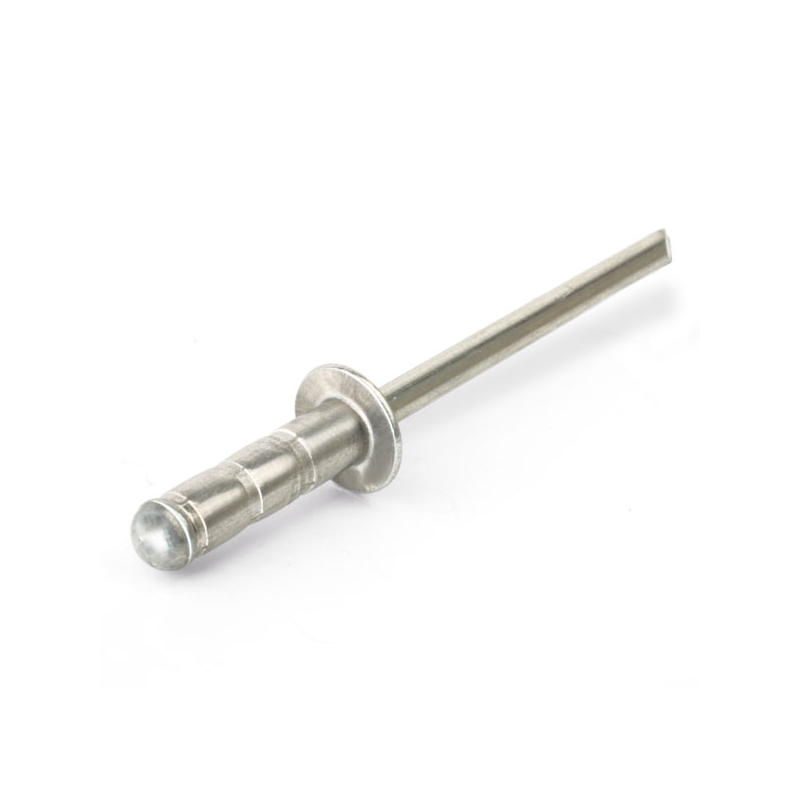

Blind rivet, multi, dome head, aluminium, D=3,2, L=11,5, clamping range, min.=4
MT106878
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 3,4mm. The diameter is 3,2mm, the length is 11,5mm and the min.clamping range is 4mm. Special products can be delived on request, if you cannot find the right product in our standard range.

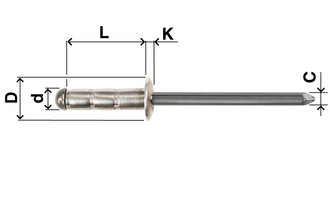

C
1,8
D
6,5
Head
Dome head
K
1
Material
AlMg 2KOM5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Multi
Diameter in mm
3.2
Shear strength
850
Hole diameter in mm
3.4
L
11.5
Clamping range, min.
4
Clamping range, max.
8
Tensile strenght, axial
1100
Long description
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 3,4mm. The diameter is 3,2mm, the length is 11,5mm and the min.clamping range is 4mm. Special products can be delived on request, if you cannot find the right product in our standard range.
