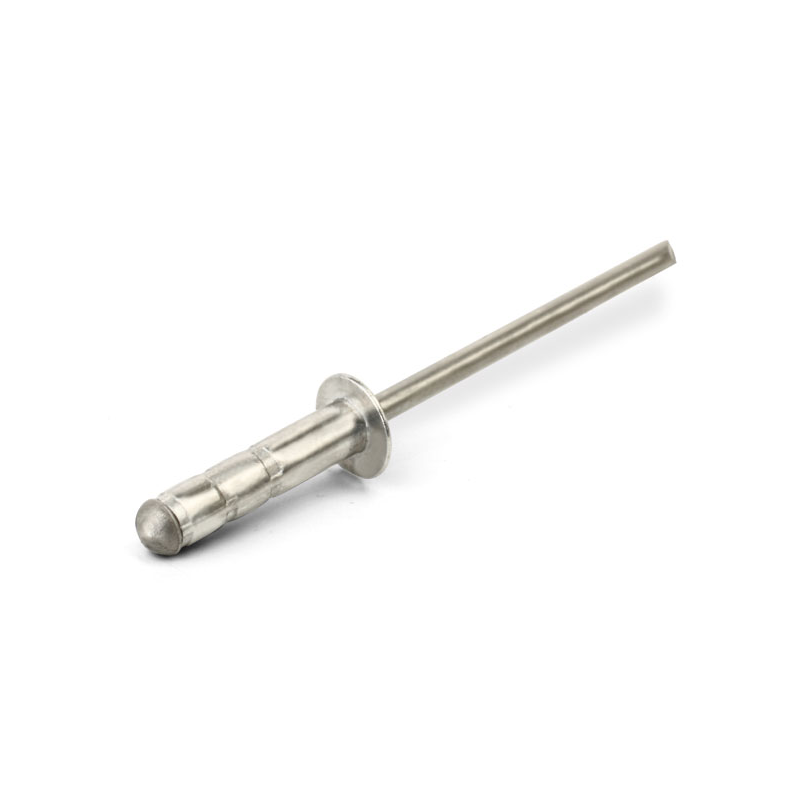

Blind rivet, multi, dome head, aluminium, D=4,8, L=11, clamping range, min.=1,3
MT106905
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 5,1mm. The diameter is 4,8mm, the length is 11mm and the min.clamping range is 1,3mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,9
D
10
Head
Dome head
K
1,45
Material
AlMg 2KOM5
Material type
Aluminium
Nail material
Stainless steel
Type
Multi
Diameter in mm
4.8
Shear strength
1550
Hole diameter in mm
5.1
L
11
Clamping range, min.
1.3
Clamping range, max.
6.5
Tensile strenght, axial
2350
Long description
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 5,1mm. The diameter is 4,8mm, the length is 11mm and the min.clamping range is 1,3mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
