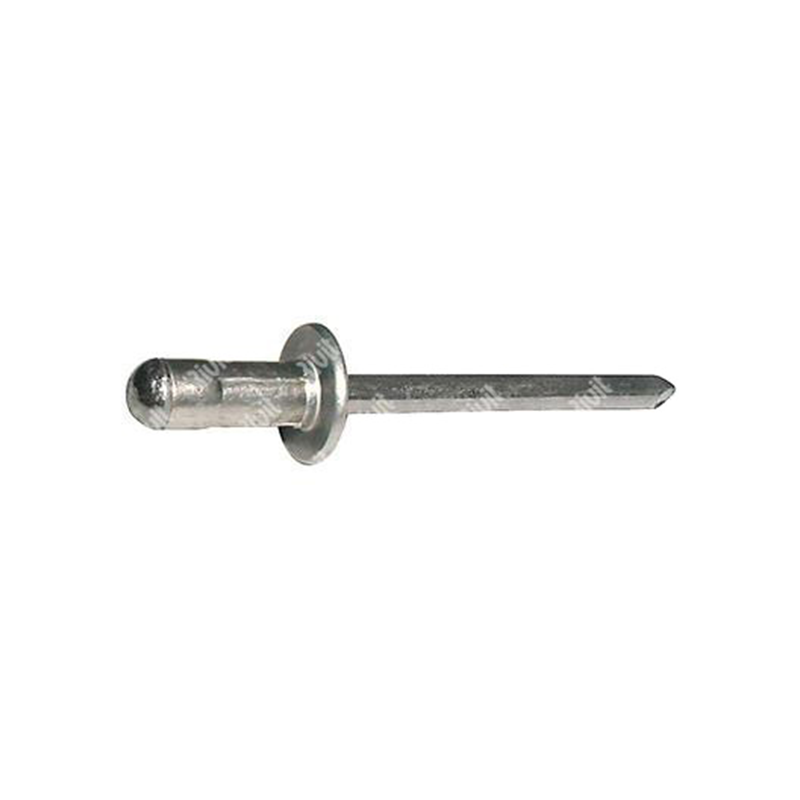

Blind rivet, multi, dome head, aluminium, D=4,8, L=16,9, clamping range, min.=6,4
MT100071
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 5mm. The diameter is 4,8mm, the length is 16,9mm and the min.clamping range is 6,4mm. Special products can be delived on request, if you cannot find the right product in our standard range.

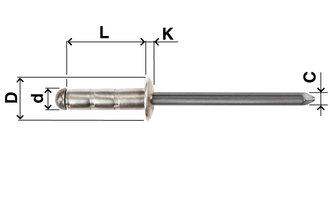

D
9,5
Head
Dome head
K
1,5
Material type
Aluminium
S
25
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Multi
Diameter in mm
4.8
Shear strength
1500
Hole diameter in mm
5
L
16.9
Clamping range, min.
6.4
Clamping range, max.
12.7
Tensile strenght, axial
2000
Long description
Blind rivet manufactured in aluminium of the type multi and with dome head, the thickness is 5mm. The diameter is 4,8mm, the length is 16,9mm and the min.clamping range is 6,4mm. Special products can be delived on request, if you cannot find the right product in our standard range.
