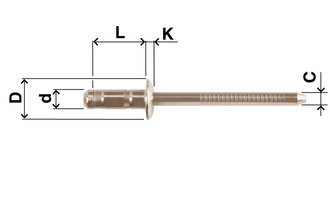

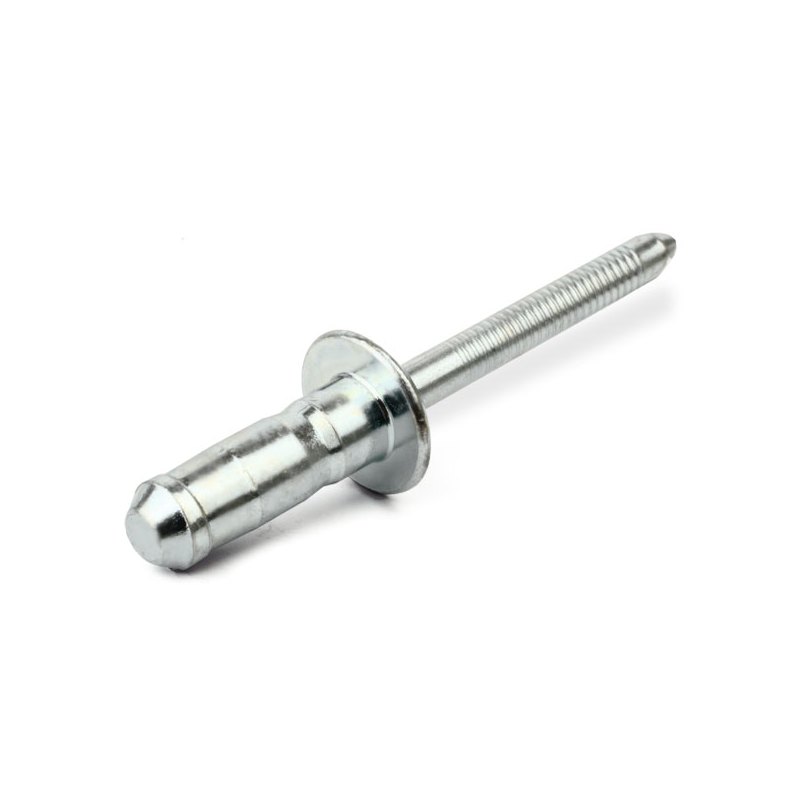

Blind rivet, multi, dome head, stainless steel, D=4, L=9, clamping range, min.=3
MT106824
Blind rivet manufactured in stainless steel of the type multi and with dome head, the thickness is 4,2mm. The diameter is 4mm, the length is 9mm and the min.clamping range is 3mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,7
D
8
Head
Dome head
K
1,3
Material
AISI 304 Cu
Material type
Stainless steel
Nail material
Stainless steel
Type
Multi
Diameter in mm
4
Shear strength
3400
Hole diameter in mm
4.2
L
9
Clamping range, min.
3
Clamping range, max.
5
Tensile strenght, axial
3200
Long description
Blind rivet manufactured in stainless steel of the type multi and with dome head, the thickness is 4,2mm. The diameter is 4mm, the length is 9mm and the min.clamping range is 3mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
