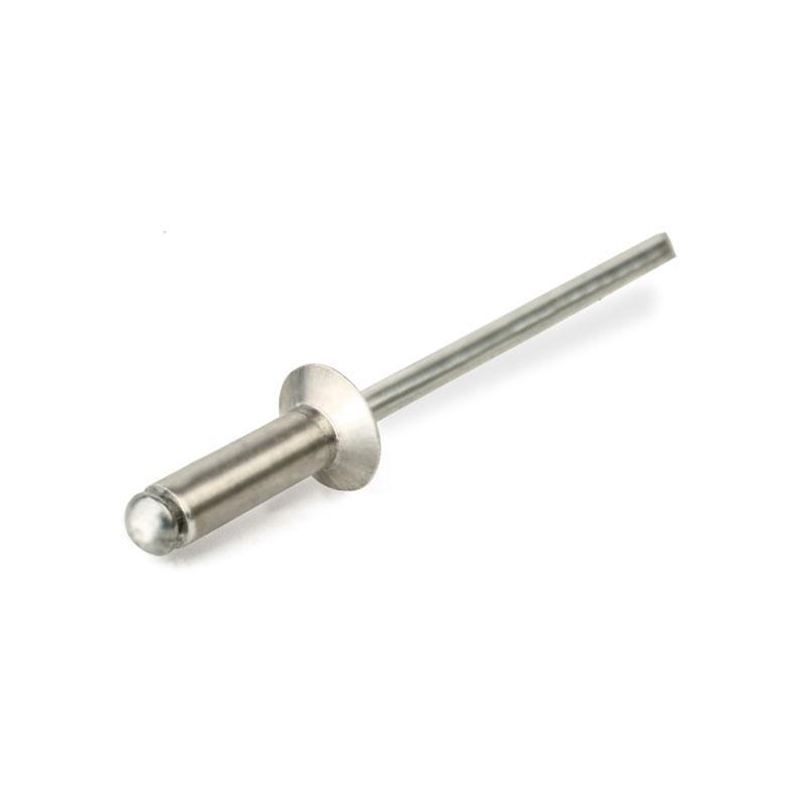

Blind rivet, open, countersunk, aluminium, D=4,8, L=12, clamping range, min.=7
MT106675
Blind rivet manufactured in aluminium of the type open and with countersunk, the thickness is 5mm. The diameter is 4,8mm, the length is 12mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.

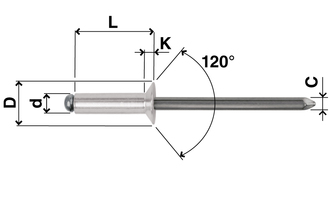

C
2,6
D
10
Head
Countersunk
K
1,5
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
4.8
Shear strength
2150
Hole diameter in mm
5
L
12
Clamping range, min.
7
Clamping range, max.
8
Tensile strenght, axial
3050
Long description
Blind rivet manufactured in aluminium of the type open and with countersunk, the thickness is 5mm. The diameter is 4,8mm, the length is 12mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.
