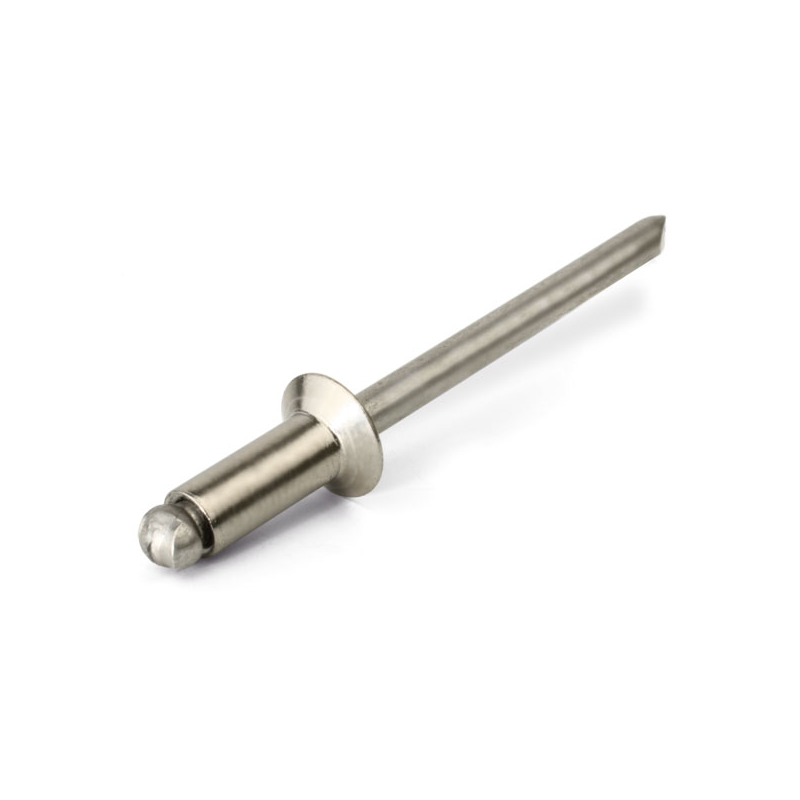

Blind rivet, open, countersunk, stainless steel, D=3,2, L=8, clamping range, min.=2,5
MT106749
Blind rivet manufactured in stainless steel of the type open and with countersunk, the thickness is 3,3mm. The diameter is 3,2mm, the length is 8mm and the min.clamping range is 2,5mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.

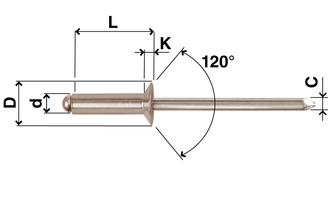

C
2
D
6,5
Head
Countersunk
K
1,1
Material
AISI 304 Cu
Material type
Stainless steel
Nail material
Stainless steel
Type
Open
Diameter in mm
3.2
Shear strength
2350
Hole diameter in mm
3.3
L
8
Nitteevne, min.
2.5
Nitteevne, max.
4.5
Tensile strenght, axial
2700
Long description
Blind rivet manufactured in stainless steel of the type open and with countersunk, the thickness is 3,3mm. The diameter is 3,2mm, the length is 8mm and the min.clamping range is 2,5mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
