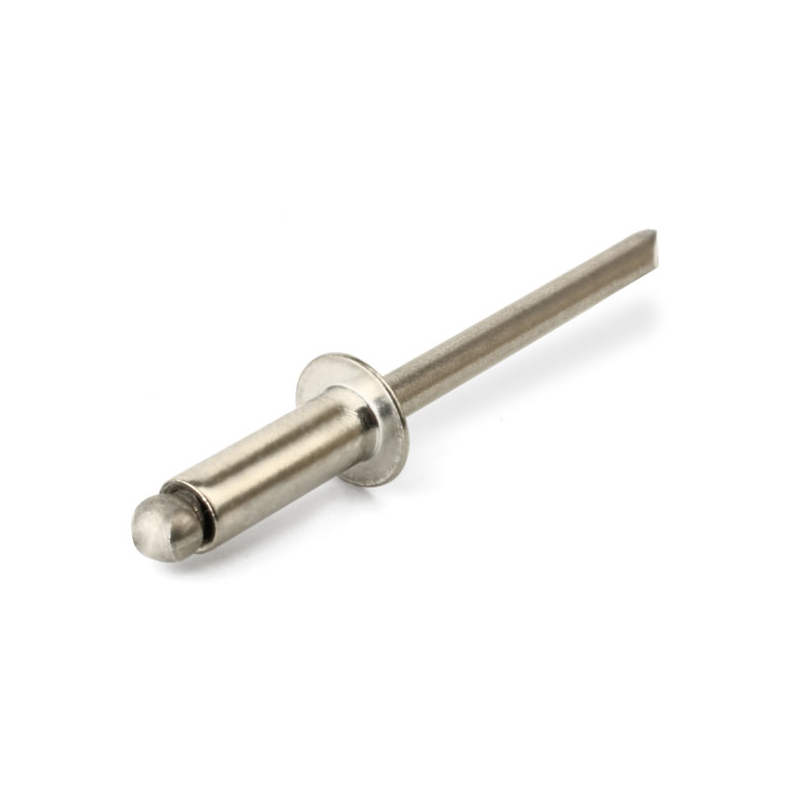

Blind rivet, open, dome head, acid proof stainless steel, D=4, L=10, clamping range, min.=4
MT106758
Blind rivet manufactured in acid proof stainless steel of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 10mm and the min.clamping range is 4mm. Nail material is: AISI 316. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,4
D
8
Head
Dome head
Material
AISI 316 Cu
Material type
Acid proof Stainless Steel
Nail material
Acid proof Stainless Steel
Type
Open
Diameter in mm
4
Shear strength
3400
Hole diameter in mm
4.1
L
10
Nitteevne, min.
4
Nitteevne, max.
6
Tensile strenght, axial
4100
Long description
Blind rivet manufactured in acid proof stainless steel of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 10mm and the min.clamping range is 4mm. Nail material is: AISI 316. Special products can be delived on request, if you cannot find the right product in our standard range.
