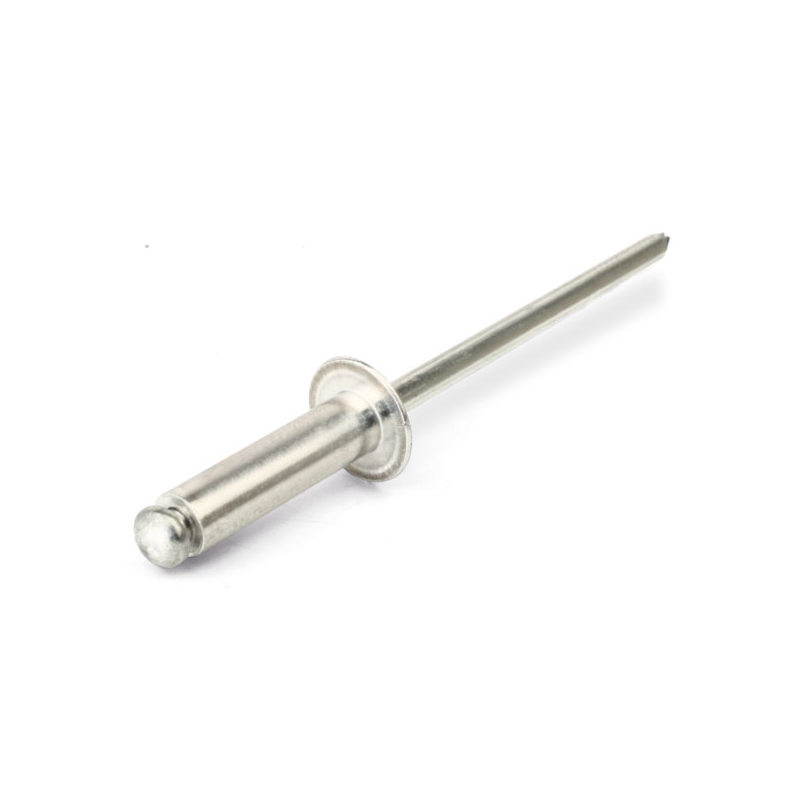

Blind rivet, open, dome head, aluminium, D=3, L=5, clamping range, min.=0,5
MT106574
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 3,1mm. The diameter is 3mm, the length is 5mm and the min.clamping range is 0,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.

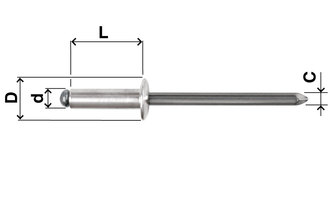

C
1,7
D
6
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
3
Shear strength
750
Hole diameter in mm
3.1
L
5
Clamping range, min.
0.5
Clamping range, max.
2
Tensile strenght, axial
1000
Long description
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 3,1mm. The diameter is 3mm, the length is 5mm and the min.clamping range is 0,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
