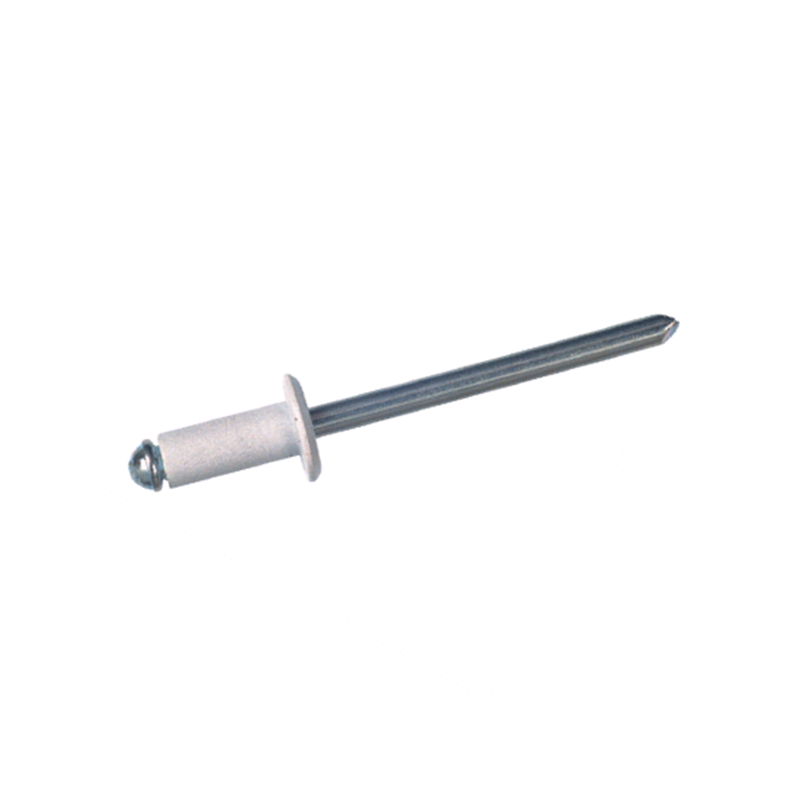

Blind rivet, open, dome head, aluminium, D=3, L=8, clamping range, min.=3
MT106576
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 3mm, the length is 8mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
Colour
White
Colour code
RAL 9010
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Surface finish
Painted
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open

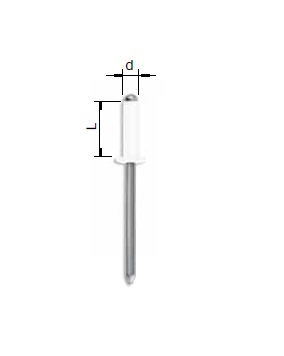

Diameter in mm
3
Shear strength
0
Hole diameter in mm
0
L
8
Clamping range, min.
3
Clamping range, max.
5
Tensile strenght, axial
0
Long description
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 3mm, the length is 8mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
