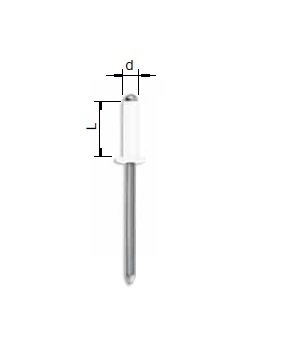

Blind rivet, open, dome head, aluminium, D=4,8, L=14, clamping range, min.=8
MT106611
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 4,8mm, the length is 14mm and the min.clamping range is 8mm. Special products can be delived on request, if you cannot find the right product in our standard range.
Colour
White
Farvekode
RAL 9010
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Surface finish
Painted
Nail material
Steel
Stiftoverflade
Electro zinc plated
Type
Open
Diameter in mm
4.8
Shear strength
0
Hole diameter in mm
0
L
14
Nitteevne, min.
8
Nitteevne, max.
10
Tensile strenght, axial
0
Long description
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 4,8mm, the length is 14mm and the min.clamping range is 8mm. Special products can be delived on request, if you cannot find the right product in our standard range.
