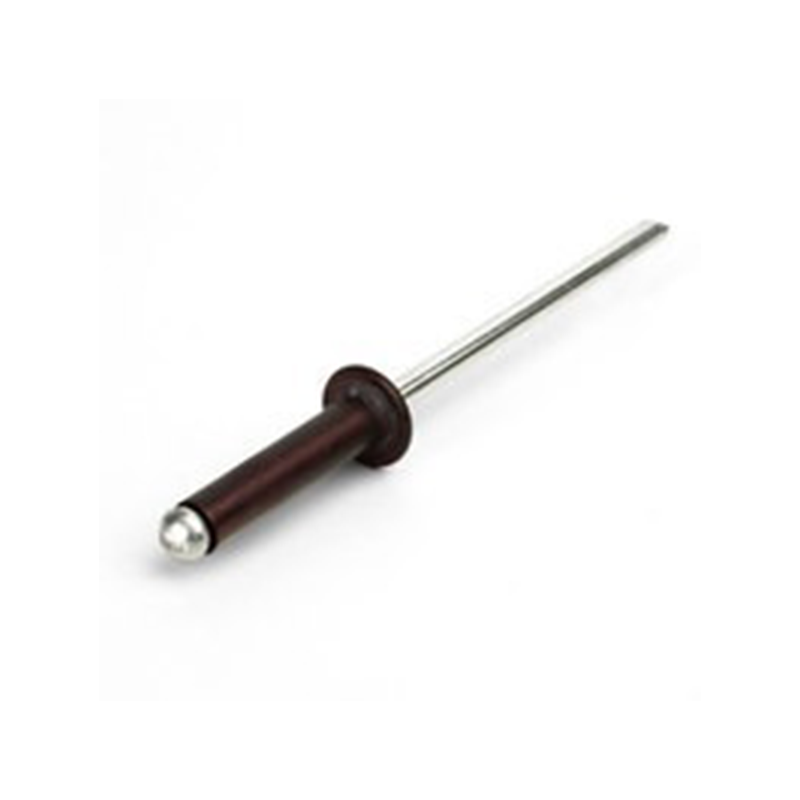

Blind rivet, open, dome head, aluminium, D=4,8, L=30, clamping range, min.=21
MT106618
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 4,8mm, the length is 30mm and the min.clamping range is 21mm. Special products can be delived on request, if you cannot find the right product in our standard range.

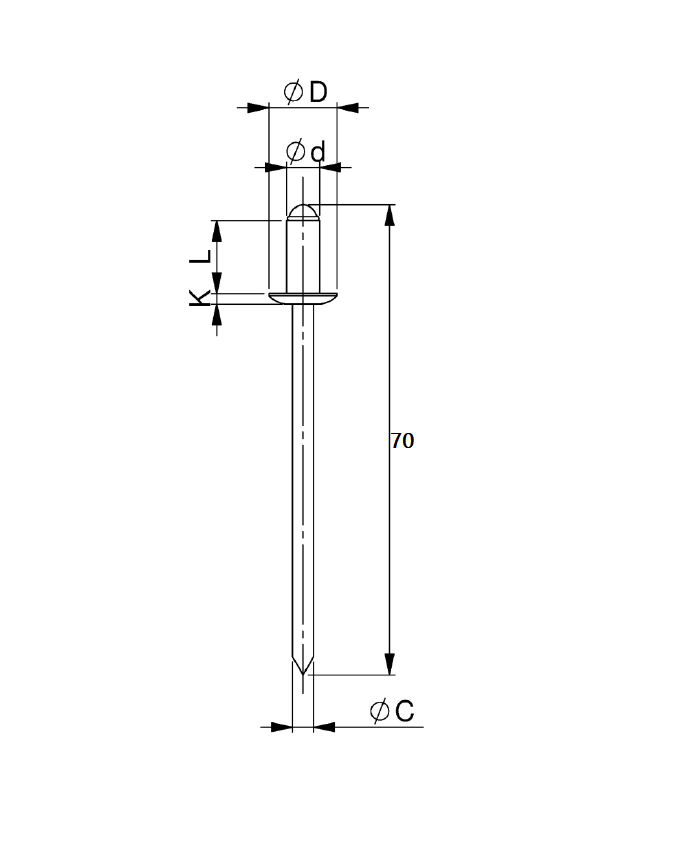

C
2,6
D
10
Colour
Black
Head
Dome head
K
1,5
Material
AlMg 3KOM5
Material type
Aluminium
Surface finish
Anodized
Nail material
Steel
Stiftoverflade
Electro zinc plated
Type
Open
Diameter in mm
4.8
Shear strength
2150
Hole diameter in mm
5
L
30
Nitteevne, min.
21
Nitteevne, max.
24
Tensile strenght, axial
3050
Long description
Blind rivet manufactured in aluminium of the type open and with dome head. The diameter is 4,8mm, the length is 30mm and the min.clamping range is 21mm. Special products can be delived on request, if you cannot find the right product in our standard range.
