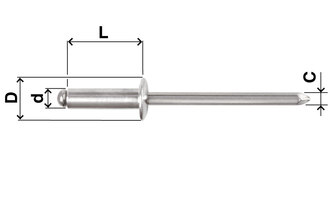

Blind rivet, open, dome head, aluminium, D=4, L=10, clamping range, min.=4,5
MT106682
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 10mm and the min.clamping range is 4,5mm. Nail material is: AlMg 5. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,6
D
8
Head
Dome head
Material
AlMg 2KOM5
Material type
Aluminium
Nail material
Aluminium
Type
Open
Diameter in mm
4
Shear strength
850
Hole diameter in mm
4.1
L
10
Clamping range, min.
4.5
Clamping range, max.
6.5
Tensile strenght, axial
1200
Long description
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 10mm and the min.clamping range is 4,5mm. Nail material is: AlMg 5. Special products can be delived on request, if you cannot find the right product in our standard range.
