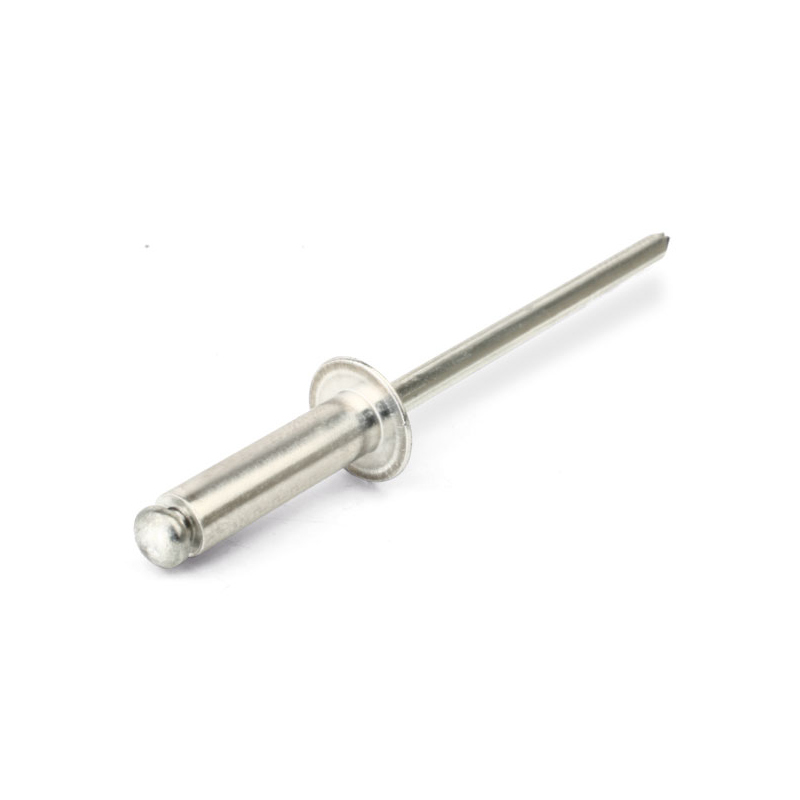

Blind rivet, open, dome head, aluminium, D=4, L=12, clamping range, min.=6,5
MT106598
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 12mm and the min.clamping range is 6,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,2
D
8
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Stiftoverflade
Electro zinc plated
Type
Open
Diameter in mm
4
Shear strength
1400
Hole diameter in mm
4.1
L
12
Nitteevne, min.
6.5
Nitteevne, max.
8.5
Tensile strenght, axial
2000
Long description
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 12mm and the min.clamping range is 6,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
