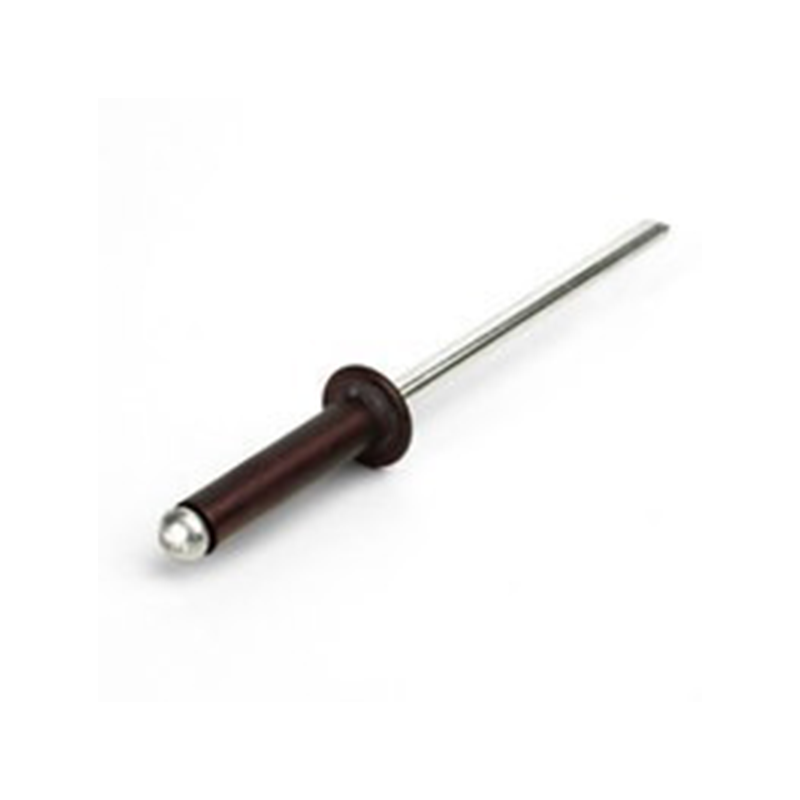

Blind rivet, open, dome head, aluminium, D=4, L=16, clamping range, min.=10,5
MT106656
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 16mm and the min.clamping range is 10,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.

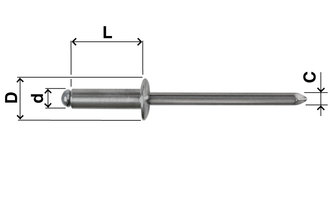

C
2,6
D
12
Colour
Black
Head
Dome head
Material type
Aluminium
Surface finish
Anodized
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
4
Shear strength
3050
Hole diameter in mm
4.1
L
16
Clamping range, min.
10.5
Clamping range, max.
12.5
Tensile strenght, axial
2150
Long description
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 16mm and the min.clamping range is 10,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
