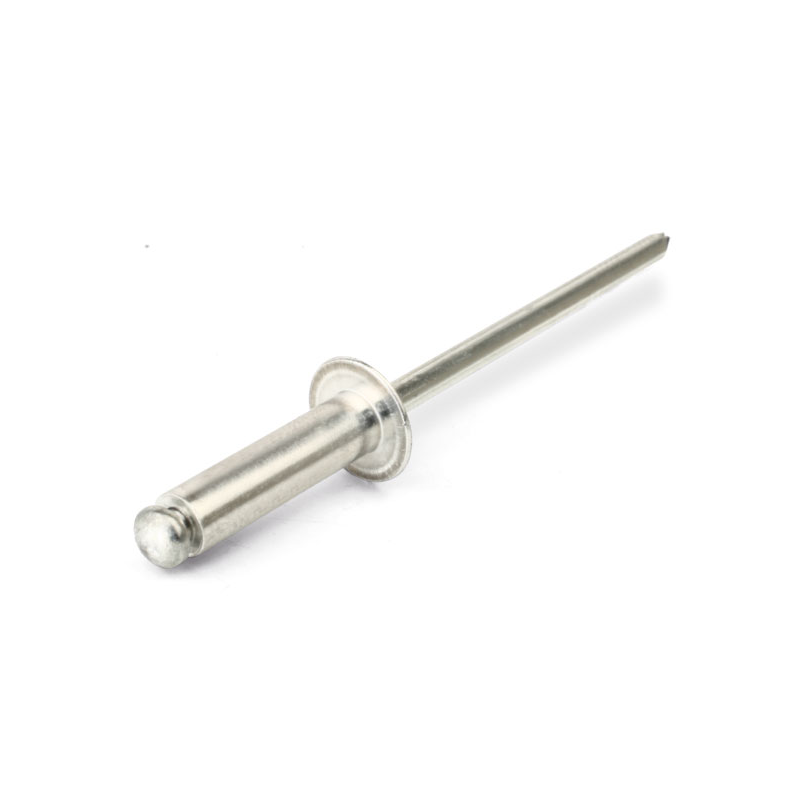

Blind rivet, open, dome head, aluminium, D=6,4, L=26, clamping range, min.=17
MT106635
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 6,5mm. The diameter is 6,4mm, the length is 26mm and the min.clamping range is 17mm. Special products can be delived on request, if you cannot find the right product in our standard range.

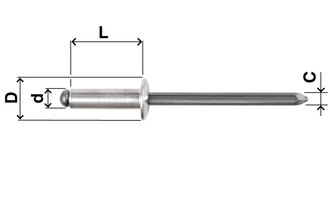

C
3,5
D
12
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Stiftoverflade
Electro zinc plated
Type
Open
Diameter in mm
6.4
Shear strength
3150
Hole diameter in mm
6.5
L
26
Nitteevne, min.
17
Nitteevne, max.
21
Tensile strenght, axial
5000
Long description
Blind rivet manufactured in aluminium of the type open and with dome head, the thickness is 6,5mm. The diameter is 6,4mm, the length is 26mm and the min.clamping range is 17mm. Special products can be delived on request, if you cannot find the right product in our standard range.
