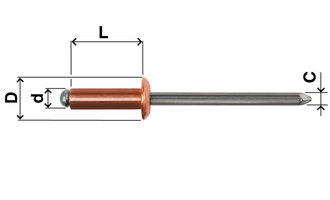

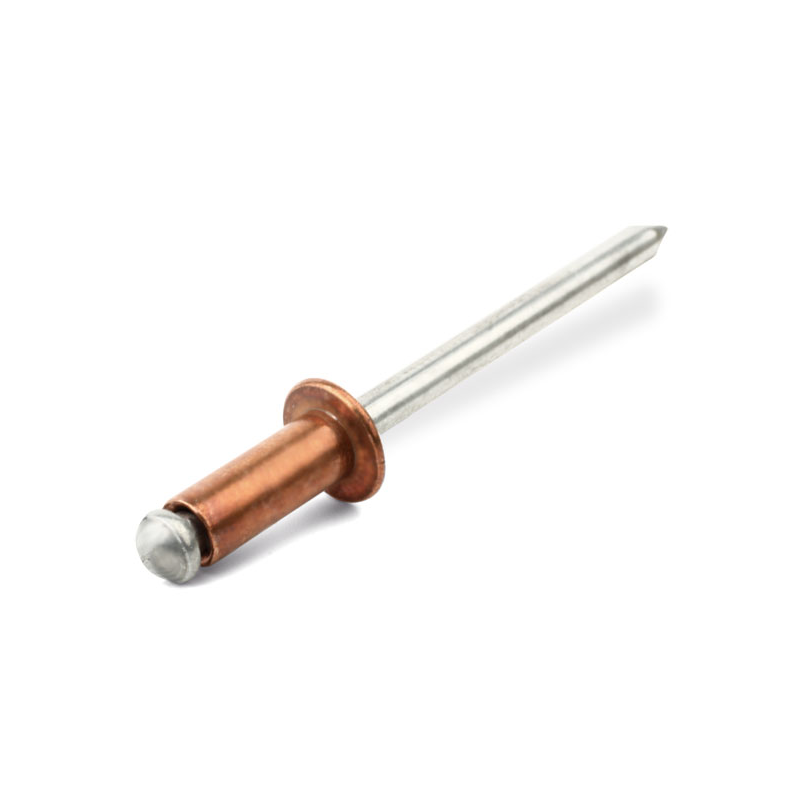

Blind rivet, open, dome head, copper, D=4, L=11, clamping range, min.=5,5
MT106785
Blind rivet manufactured in copper of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 11mm and the min.clamping range is 5,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2,2
D
8
Head
Dome head
Material type
Copper
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
4
Shear strength
1650
Hole diameter in mm
4.1
L
11
Clamping range, min.
5.5
Clamping range, max.
7.5
Tensile strenght, axial
2200
Long description
Blind rivet manufactured in copper of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 11mm and the min.clamping range is 5,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
