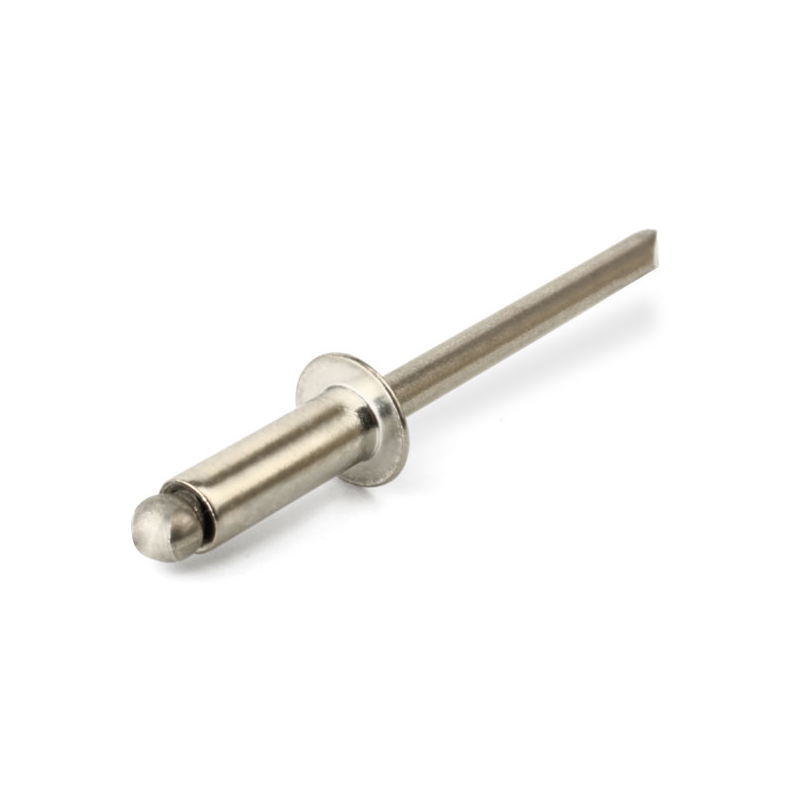

Blind rivet, open, dome head, stainless steel, D=4, L=16, clamping range, min.=10
MT106739
Blind rivet manufactured in stainless steel of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 16mm and the min.clamping range is 10mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.

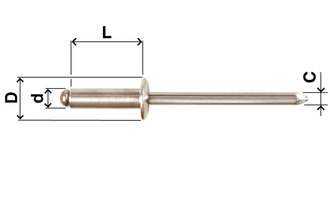

C
2,4
D
8
Head
Dome head
Material
AISI 304 Cu
Material type
Stainless steel
Nail material
Stainless steel
Type
Open
Diameter in mm
4
Shear strength
3400
Hole diameter in mm
4.1
L
16
Clamping range, min.
10
Clamping range, max.
12
Tensile strenght, axial
4100
Long description
Blind rivet manufactured in stainless steel of the type open and with dome head, the thickness is 4,1mm. The diameter is 4mm, the length is 16mm and the min.clamping range is 10mm. Nail material is: AISI 304. Special products can be delived on request, if you cannot find the right product in our standard range.
