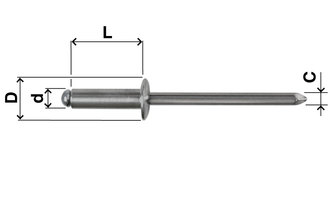

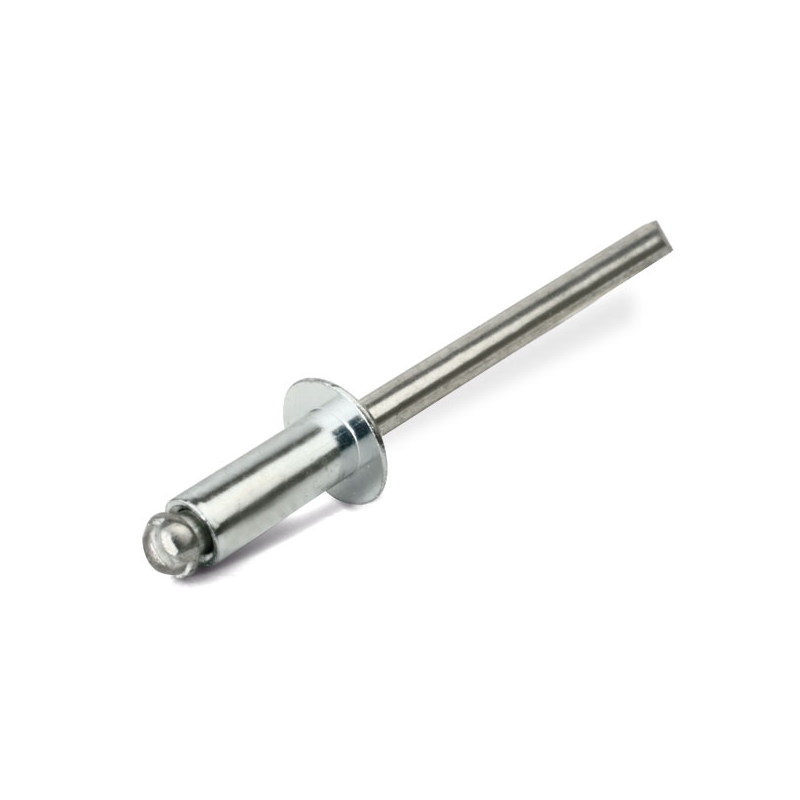

Blind rivet, open, dome head, steel, D=3,2, L=8, clamping range, min.=3
MT106710
Blind rivet manufactured in steel of the type open and with dome head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 8mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
C
2
D
6,5
Head
Dome head
Material
C4C
Material type
Steel
Surface finish
Electro zinc plated
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
3.2
Shear strength
1400
Hole diameter in mm
3.3
L
8
Clamping range, min.
3
Clamping range, max.
5
Tensile strenght, axial
1750
Long description
Blind rivet manufactured in steel of the type open and with dome head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 8mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
