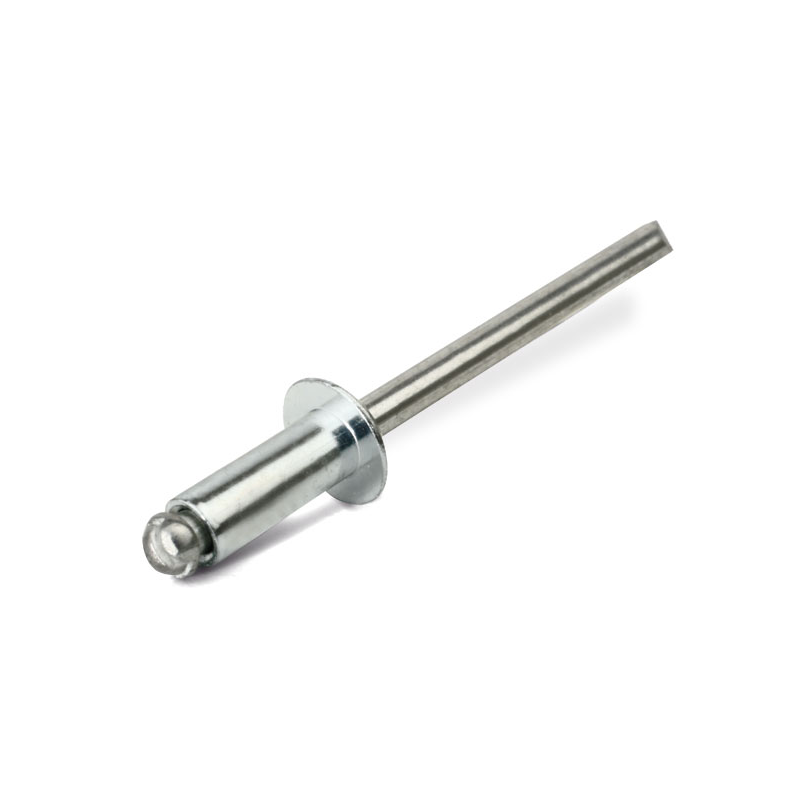

Blind rivet, open, dome head, steel, D=6, L=15, clamping range, min.=7
MT106726
Blind rivet manufactured in steel of the type open and with dome head, the thickness is 6,1mm. The diameter is 6mm, the length is 15mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.

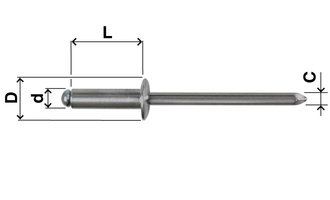

C
3,5
D
12
Head
Dome head
Material
C4C
Material type
Steel
Surface finish
Electro zinc plated
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
6
Shear strength
4620
Hole diameter in mm
6.1
L
15
Clamping range, min.
7
Clamping range, max.
10
Tensile strenght, axial
5900
Long description
Blind rivet manufactured in steel of the type open and with dome head, the thickness is 6,1mm. The diameter is 6mm, the length is 15mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.
