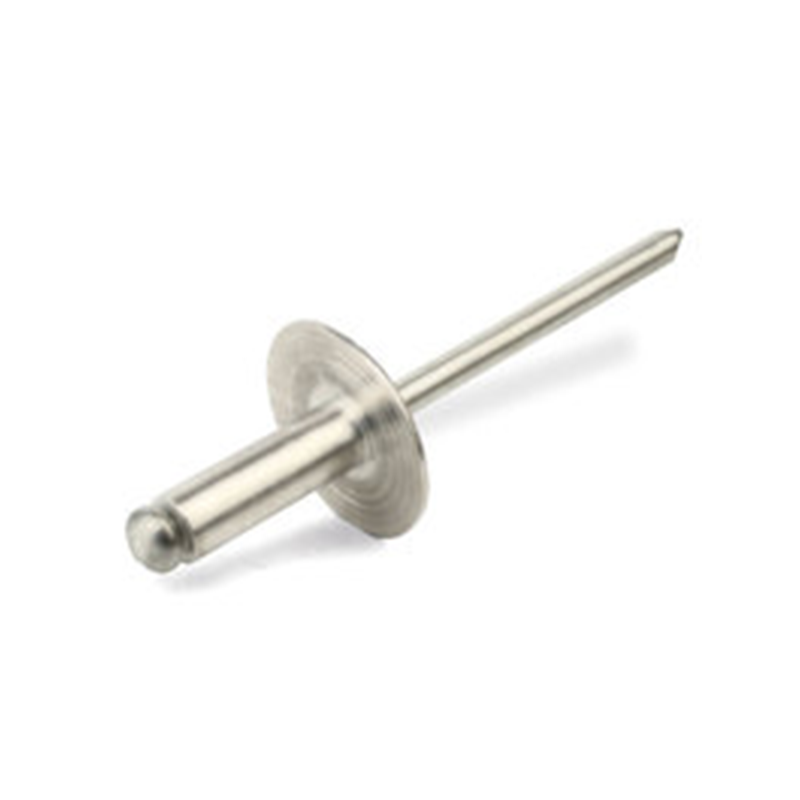

Blind rivet, open, large head, aluminium, D=3,2, L=12, clamping range, min.=7
MT106645
Blind rivet manufactured in aluminium of the type open and with large head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 12mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.

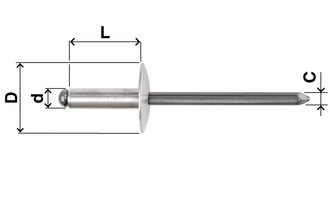

C
1,8
D
10
Head
Large head
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Open
Diameter in mm
3.2
Shear strength
900
Hole diameter in mm
3.3
L
12
Clamping range, min.
7
Clamping range, max.
9
Tensile strenght, axial
1250
Long description
Blind rivet manufactured in aluminium of the type open and with large head, the thickness is 3,3mm. The diameter is 3,2mm, the length is 12mm and the min.clamping range is 7mm. Special products can be delived on request, if you cannot find the right product in our standard range.
