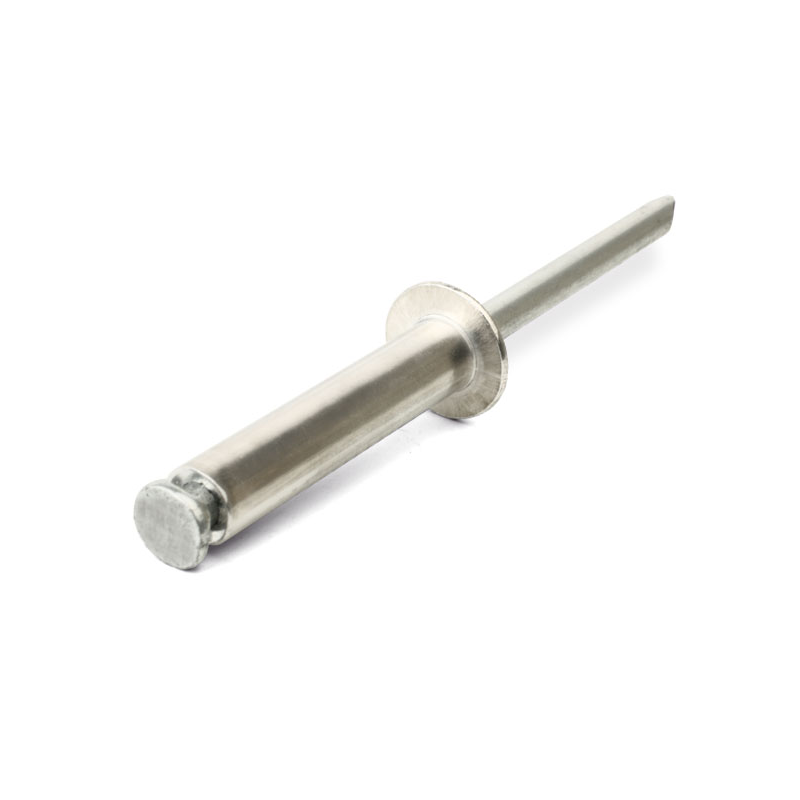

Blind rivet, split, dome head, aluminium, D=4, L=12, clamping range, min.=3
MT106853
Blind rivet manufactured in aluminium of the type split and with dome head, the thickness is 4,3mm. The diameter is 4mm, the length is 12mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.

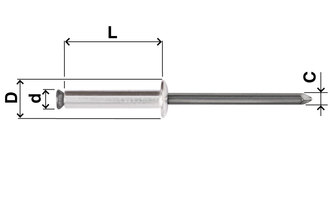

C
2,2
D
8
Head
Dome head
Material
AlMg 3KOM5
Material type
Aluminium
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
Split
Diameter in mm
4
Shear strength
1450
Hole diameter in mm
4.3
L
12
Clamping range, min.
3
Clamping range, max.
6
Tensile strenght, axial
1250
Long description
Blind rivet manufactured in aluminium of the type split and with dome head, the thickness is 4,3mm. The diameter is 4mm, the length is 12mm and the min.clamping range is 3mm. Special products can be delived on request, if you cannot find the right product in our standard range.
