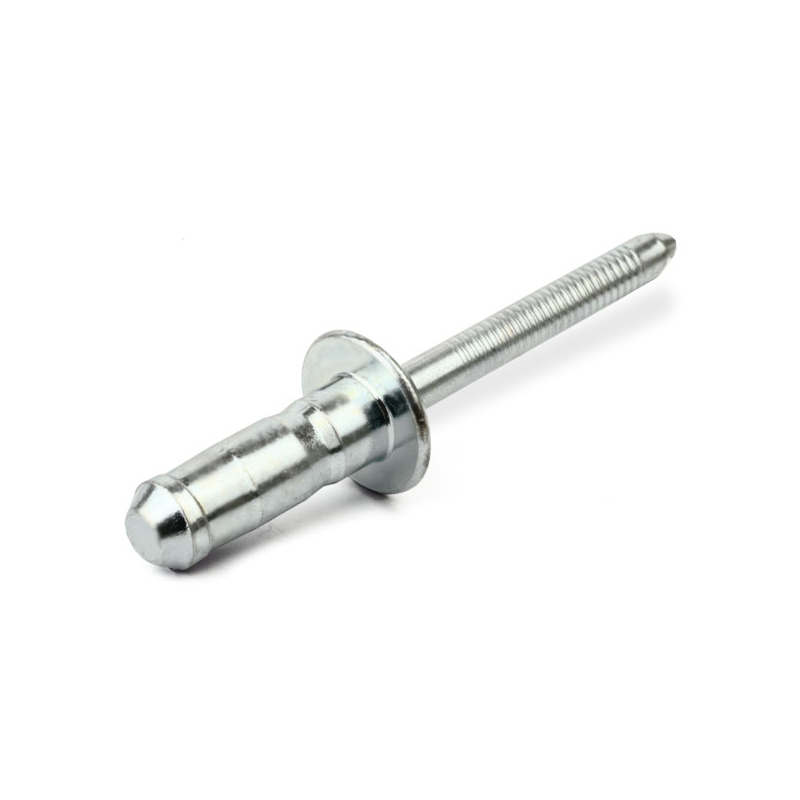

Blind rivet, tamp, dome head, steel, D=4,8, L=9, clamping range, min.=1,5
MT106819
Blind rivet manufactured in steel of the type tamp and with dome head, the thickness is 5,1mm. The diameter is 4,8mm, the length is 9mm and the min.clamping range is 1,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.

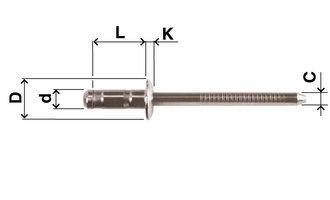

C
3,2
D
10
Head
Dome head
K
1,5
Material
C4C
Material type
Steel
Surface finish
Electro zinc plated
Nail material
Steel
Nail surface finish
Electro zinc plated
Type
TAMP
Diameter in mm
4.8
Shear strength
3400
Hole diameter in mm
5.1
L
9
Clamping range, min.
1.5
Clamping range, max.
3.5
Tensile strenght, axial
3800
Long description
Blind rivet manufactured in steel of the type tamp and with dome head, the thickness is 5,1mm. The diameter is 4,8mm, the length is 9mm and the min.clamping range is 1,5mm. Special products can be delived on request, if you cannot find the right product in our standard range.
