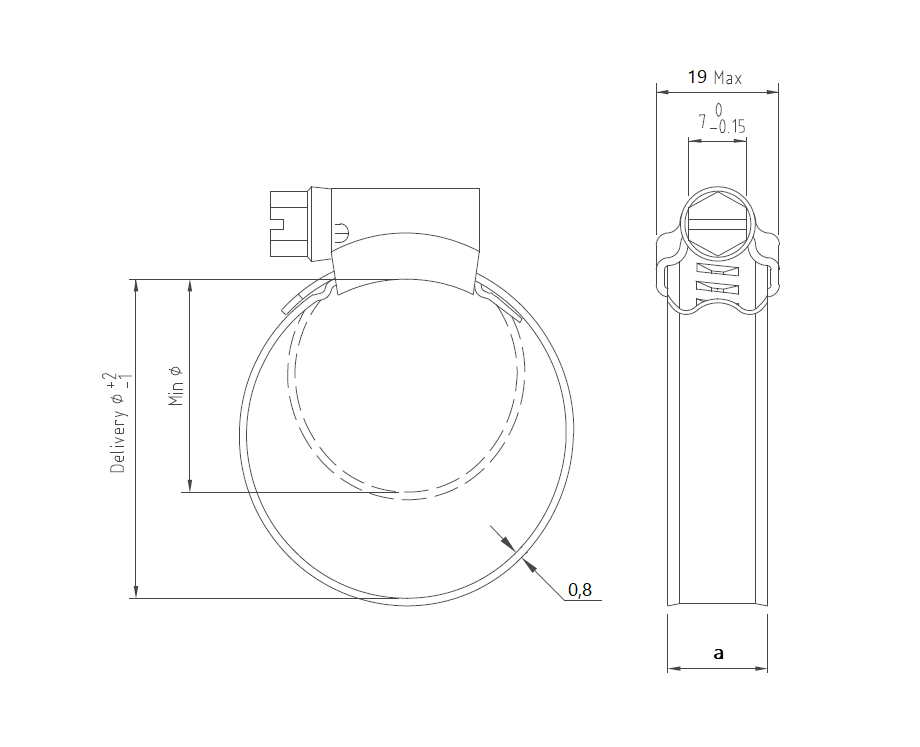

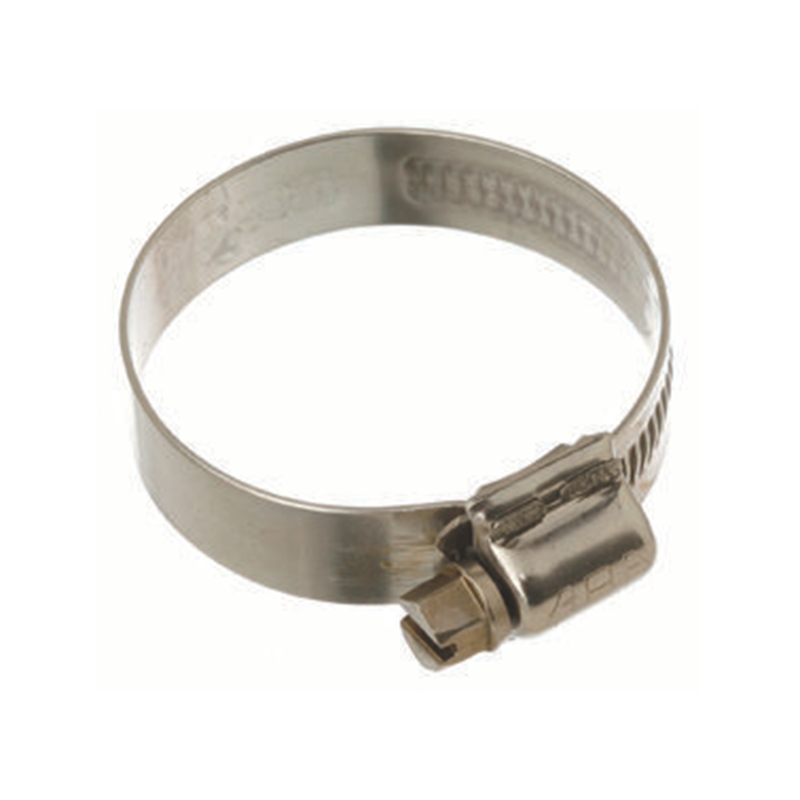

Complete hose clamp, acid proof stainless steel, Diameter range: 104-138mm, T= 0,8mm, torque= 6Nm
MT110845
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 104-138mm, the thickness is 0,8mm. The torque is 5 - 6Nm. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Material
AISI 316
Material type
Acid proof Stainless Steel
Series
ABA
Wrench
7
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
104
Diameter, max.
138
Torque in N.m
6
Thread length in mm
0
Thickness in mm
0.8
Long description
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 104-138mm, the thickness is 0,8mm. The torque is 5 - 6Nm. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
