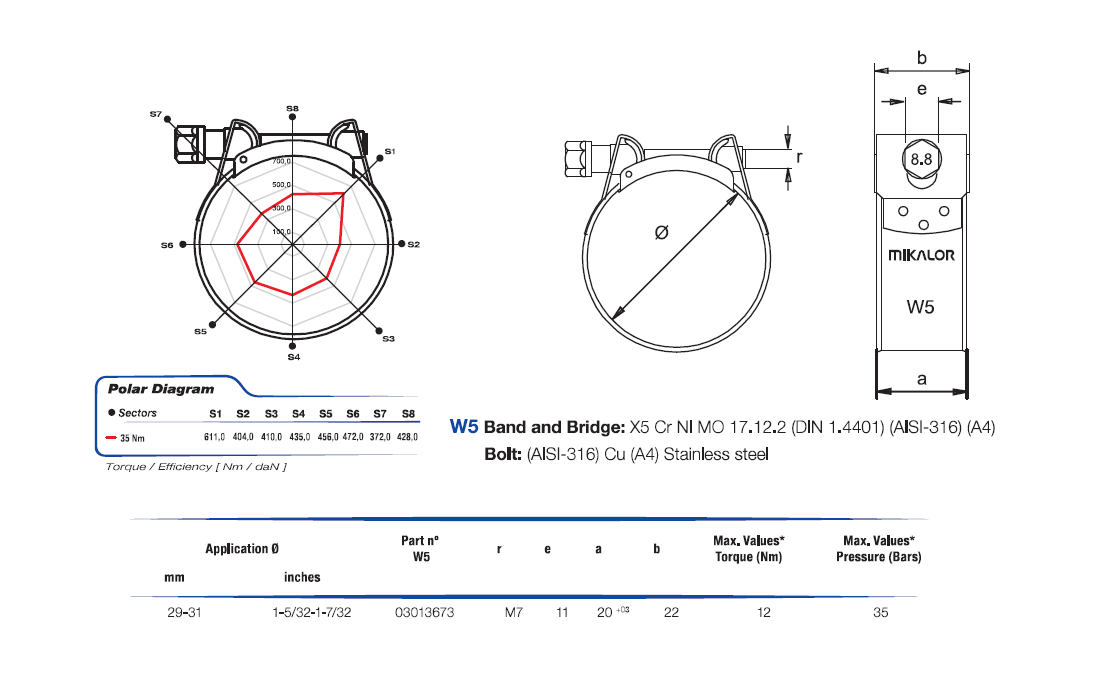

Complete hose clamp, acid proof stainless steel, Diameter range: 29-31mm, torque= 12Nm, Load class= High
MT100179
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 29-31mm. The torque is 12Nm. The load class is High. Hose clamp with bolt.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
High
Tread size
M7
Material
AISI 316
Material type
Acid proof Stainless Steel
Material execution
W5
RoHS
Yes
Series
Supra Heavy-Duty
Skruenøgle
11
Tryk, max.
35
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
29
Diameter, max.
31
Drejningsmoment i N.m
12
Gevindlængde i mm
0
Thickness in mm
0
Long description
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 29-31mm. The torque is 12Nm. The load class is High. Hose clamp with bolt.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
