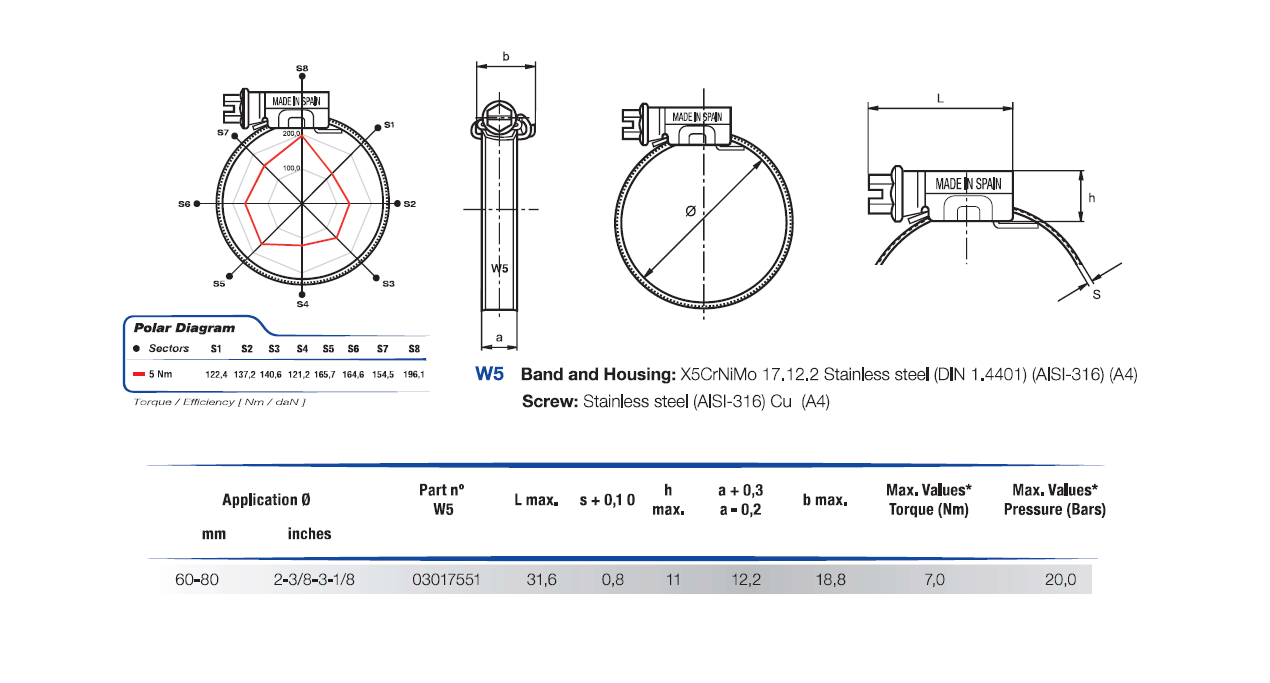

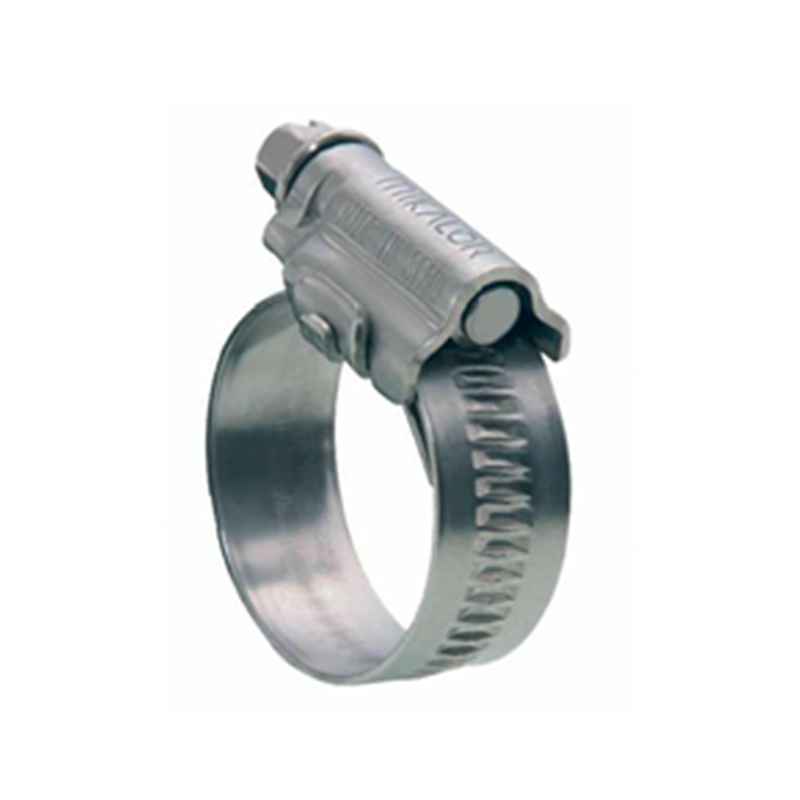

Complete hose clamp, acid proof stainless steel, Diameter range: 60-80mm, T= 0,8mm, torque= 7Nm, Load class= Medium
MT111408
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 60-80mm, the thickness is 0,8mm. The torque is 7Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
Medium
Material
AISI 316
Material type
Acid proof Stainless Steel
Material execution
W5
RoHS
Yes
Series
ASFA-S
Pressure, max.
20
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
60
Diameter, max.
80
Torque in N.m
7
Thread length in mm
0
Thickness in mm
0.8
Long description
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 60-80mm, the thickness is 0,8mm. The torque is 7Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Product data
