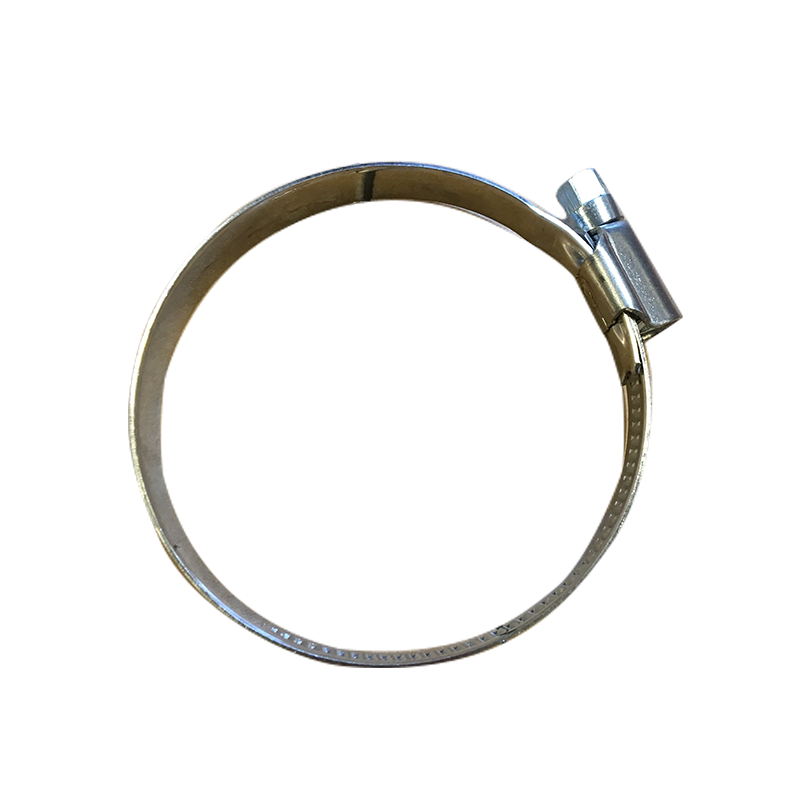

Complete hose clamp, acid proof stainless steel, Diameter range: 90-110mm, T= 0,64mm, torque= 6Nm
MT100200

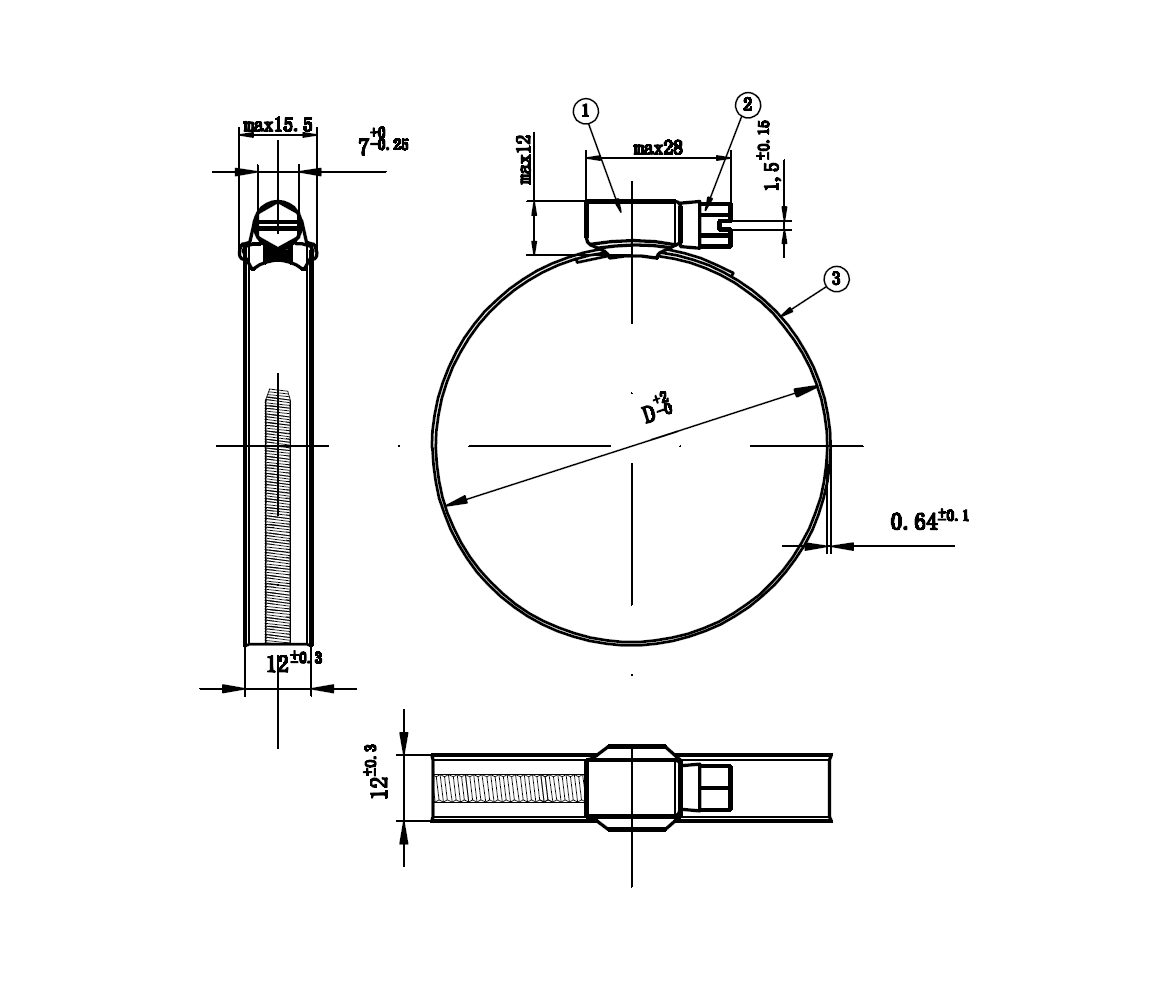

Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 90-110mm, the thickness is 0,64mm. The torque is 6Nm. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Material
AISI 316
Material type
Acid proof Stainless Steel
Material execution
W5
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
90
Diameter, max.
110
Torque in N.m
6
Thread length in mm
0
Thickness in mm
0.64
Long description
Complete hose clamp manufactured in acid proof stainless steel. Diameter range is 90-110mm, the thickness is 0,64mm. The torque is 6Nm. DIN 3017 Hose clamp with worm drive. *It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
