Complete hose clamp, electro zinc plated steel, Diameter range: 25-40mm, T= 0,8mm, torque= 5,2Nm, Load class= Medium
MT100170

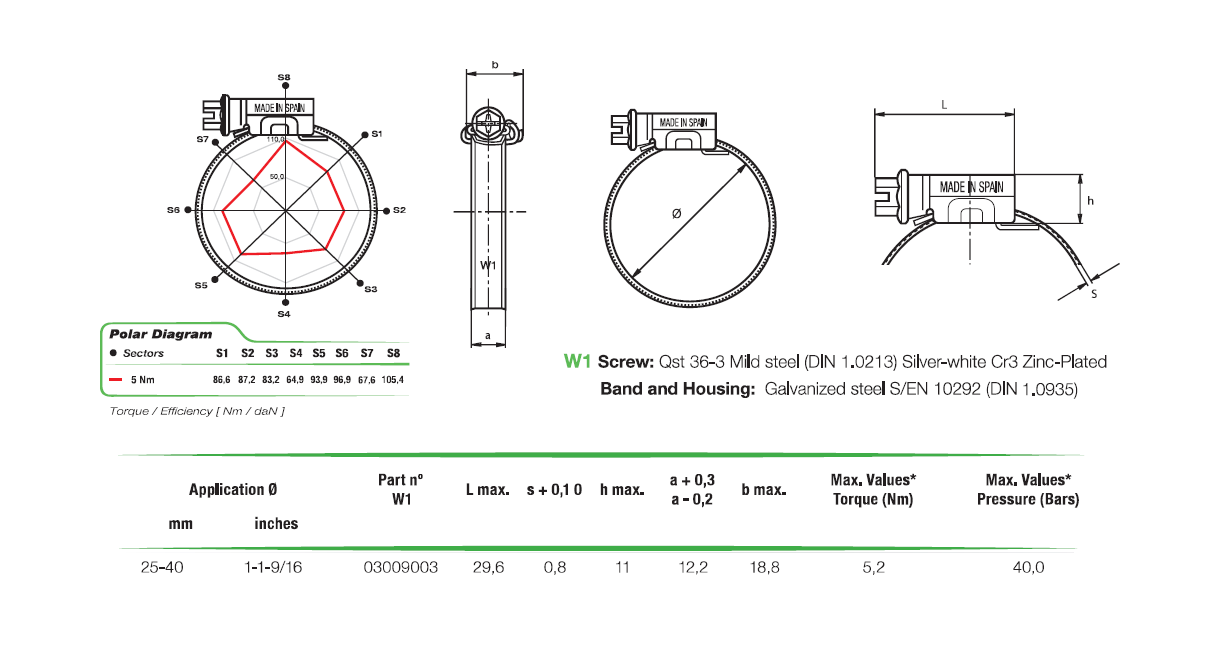

Complete hose clamp manufactured in electro zinc plated steel. Diameter range is 25-40mm, the thickness is 0,8mm. The torque is 5,2Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
Medium
Material type
Steel
Material execution
W1
Surface finish
Electro zinc plated
RoHS
Yes
Series
ASFA-S
Pressure, max.
40
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
25
Diameter, max.
40
Torque in N.m
5.2
Thread length in mm
0
Thickness in mm
0.8
Long description
Complete hose clamp manufactured in electro zinc plated steel. Diameter range is 25-40mm, the thickness is 0,8mm. The torque is 5,2Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Product data
