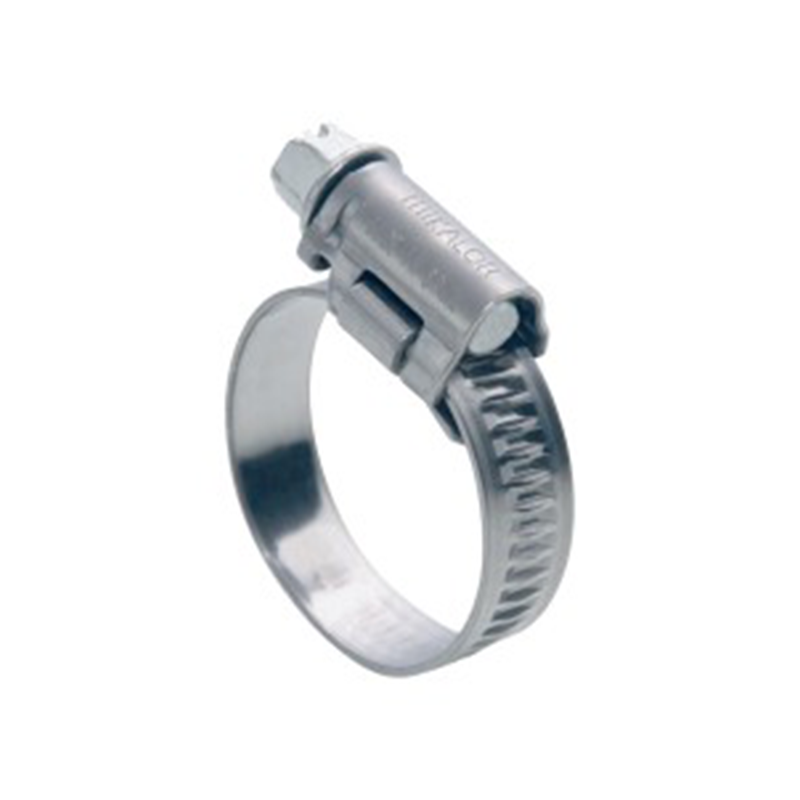

Complete hose clamp, electro zinc plated steel, Diameter range: 8-16mm, T= 0,65mm, torque= 3Nm, Load class= Medium
MT100163

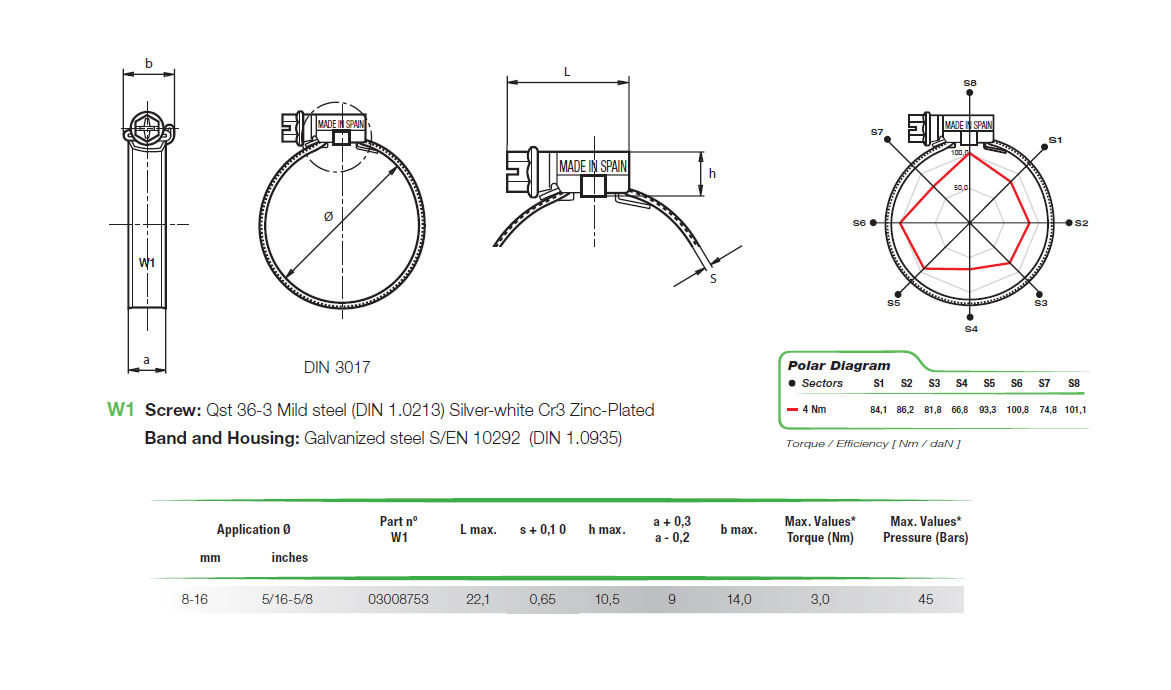

Complete hose clamp manufactured in electro zinc plated steel. Diameter range is 8-16mm, the thickness is 0,65mm. The torque is 3Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
Medium
Material type
Steel
Material execution
W1
Surface finish
Electro zinc plated
RoHS
Yes
Series
ASFA-L
Pressure, max.
45
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
8
Diameter, max.
16
Torque in N.m
3
Thread length in mm
0
Thickness in mm
0.65
Long description
Complete hose clamp manufactured in electro zinc plated steel. Diameter range is 8-16mm, the thickness is 0,65mm. The torque is 3Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
