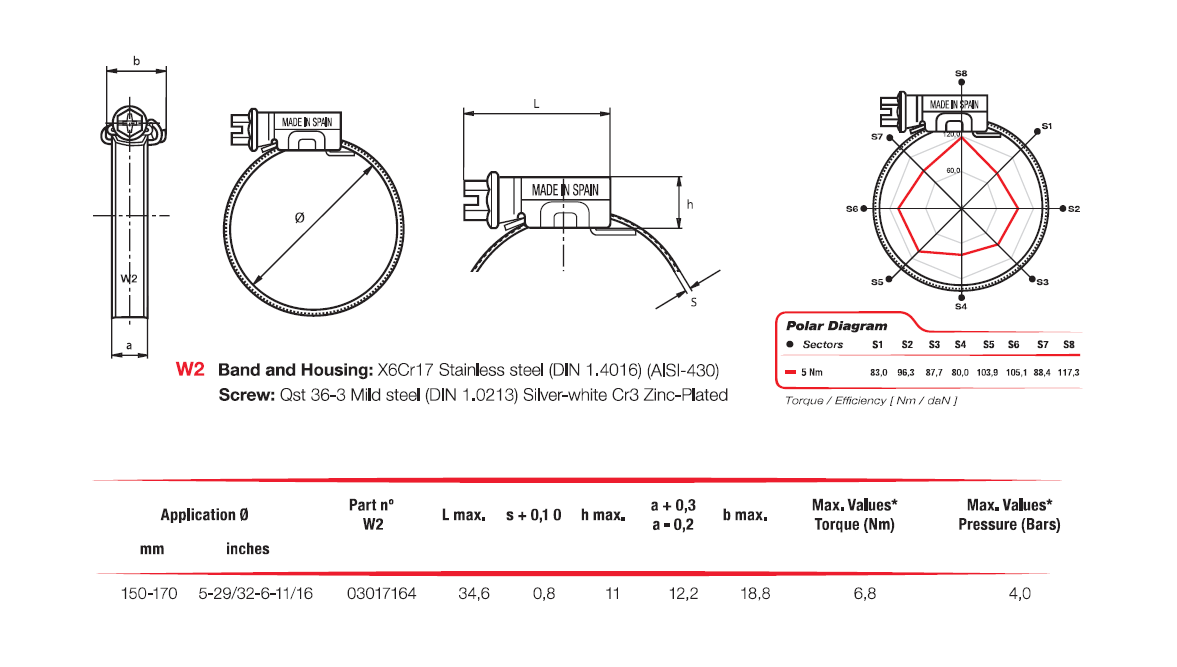

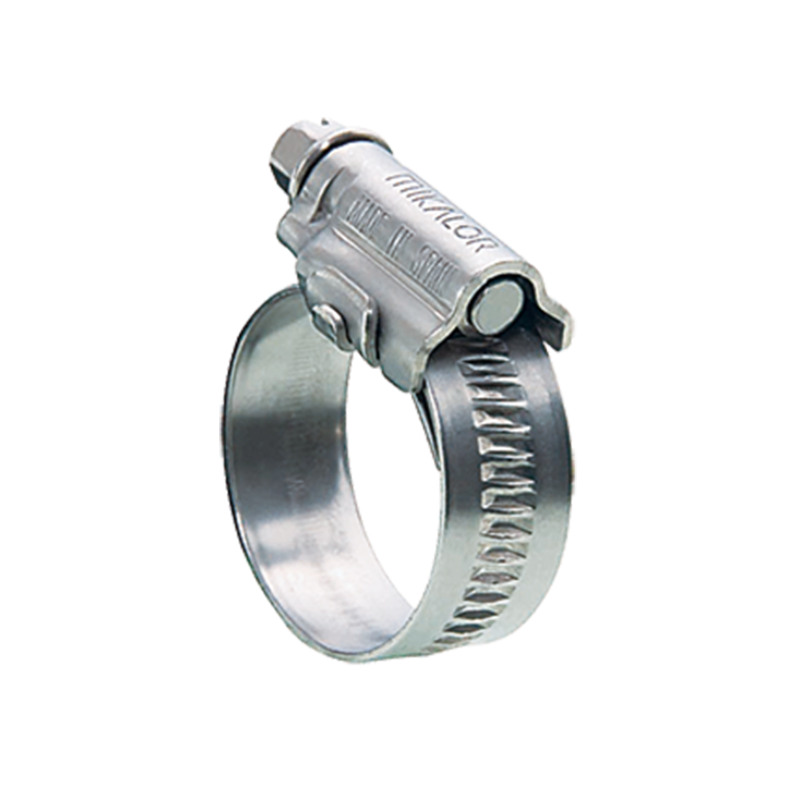

Complete hose clamp, stainless steel, Diameter range: 150-170mm, T= 0,8mm, torque= 6,8Nm, Load class= Medium
MT100197
Complete hose clamp manufactured in stainless steel. Diameter range is 150-170mm, the thickness is 0,8mm. The torque is 6,8Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values.
Material and surface treatment of the worm drive is: Steel electro zinc plated We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
Medium
Material
AISI 430
Material type
Stainless steel
Material execution
W2
RoHS
Yes
Series
ASFA-S
Pressure, max.
4
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
150
Diameter, max.
170
Torque in N.m
6.8
Thread length in mm
0
Thickness in mm
0.8
Long description
Complete hose clamp manufactured in stainless steel. Diameter range is 150-170mm, the thickness is 0,8mm. The torque is 6,8Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values.
Material and surface treatment of the worm drive is: Steel electro zinc plated We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
