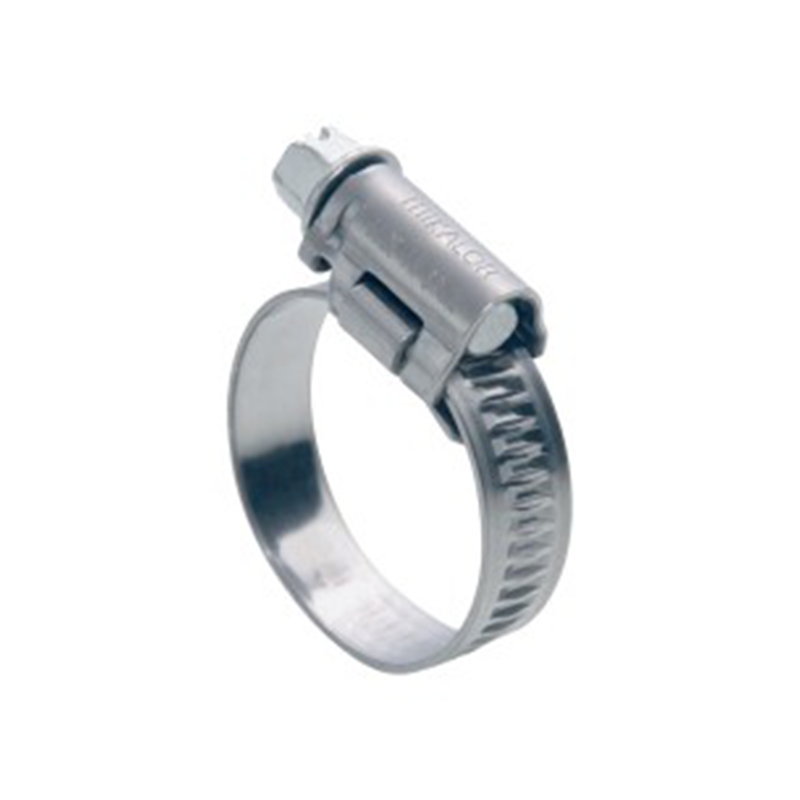

Complete hose clamp, stainless steel, Diameter range: 20-32mm, T= 0,75mm, torque= 3,5Nm, Load class= Medium
MT100182

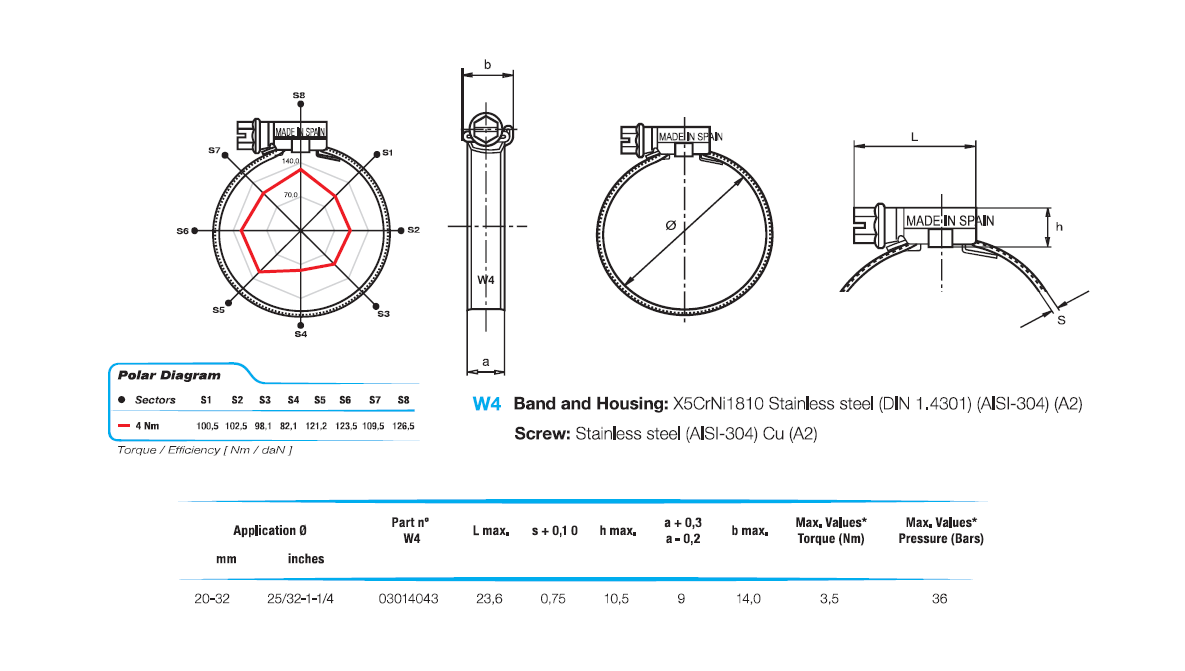

Complete hose clamp manufactured in stainless steel. Diameter range is 20-32mm, the thickness is 0,75mm. The torque is 3,5Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
Medium
Material
AISI 304
Material type
Stainless steel
Material execution
W4
RoHS
Yes
Series
ASFA-L
Pressure, max.
36
Type
Screw adjusting
Breakage load (Ultimate stress) in kg
0
Diameter, min.
20
Diameter, max.
32
Torque in N.m
3.5
Thread length in mm
0
Thickness in mm
0.75
Long description
Complete hose clamp manufactured in stainless steel. Diameter range is 20-32mm, the thickness is 0,75mm. The torque is 3,5Nm. The load class is Medium. DIN 3017 Hose clamp with worm drive.
*It is recommended to apply 75% of the maximum pressure and torque values. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
