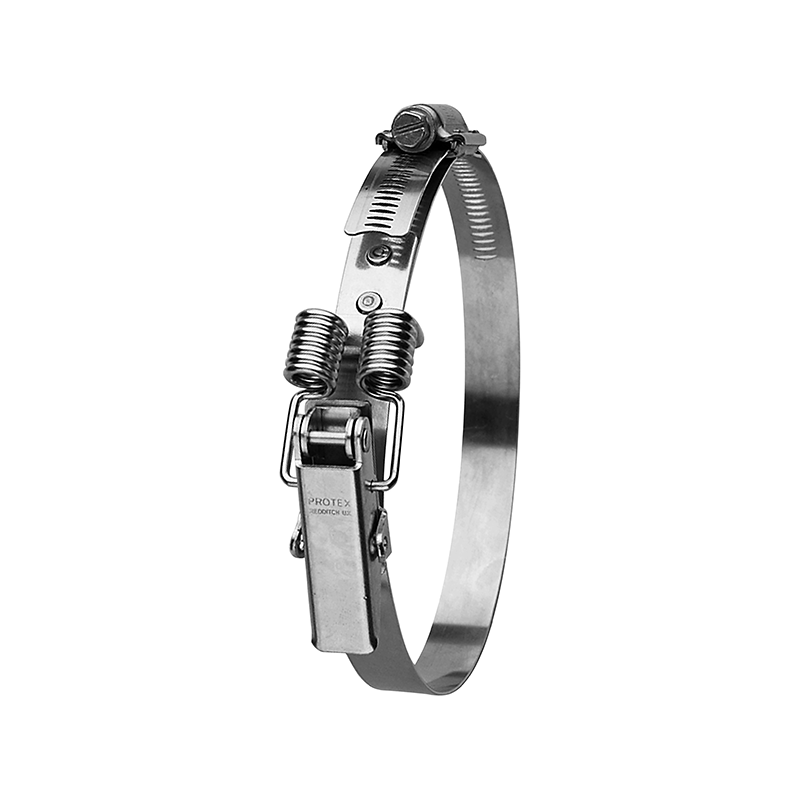

Complete hose clamp, stainless steel, Diameter range: 210-255mm, T= 0,7mm, spring claw
MT105331

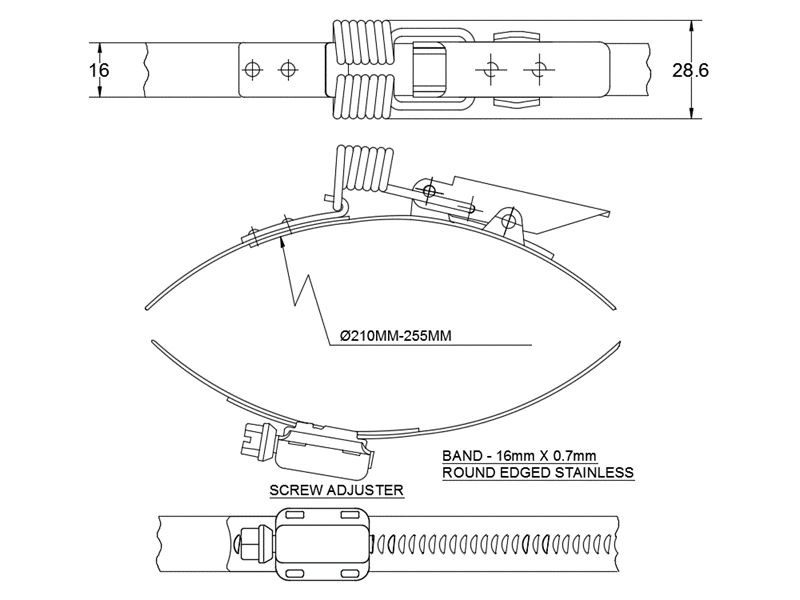

Complete hose clamp manufactured in stainless steel. Diameter range is 210-255mm, the thickness is 0,7mm. The produkt is equipped with a spring claw.. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Spring claw
Yes
Material
AISI 304
Material type
Stainless steel
Maximum work load (Tensile strenght)
50% af brudstyrken
Type
Screw adjusting and toggle latch
Breakage load (Ultimate stress) in kg
40
Diameter, min.
210
Diameter, max.
255
Drejningsmoment i N.m
0
Gevindlængde i mm
0
Thickness in mm
0.7
Long description
Complete hose clamp manufactured in stainless steel. Diameter range is 210-255mm, the thickness is 0,7mm. The produkt is equipped with a spring claw.. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
