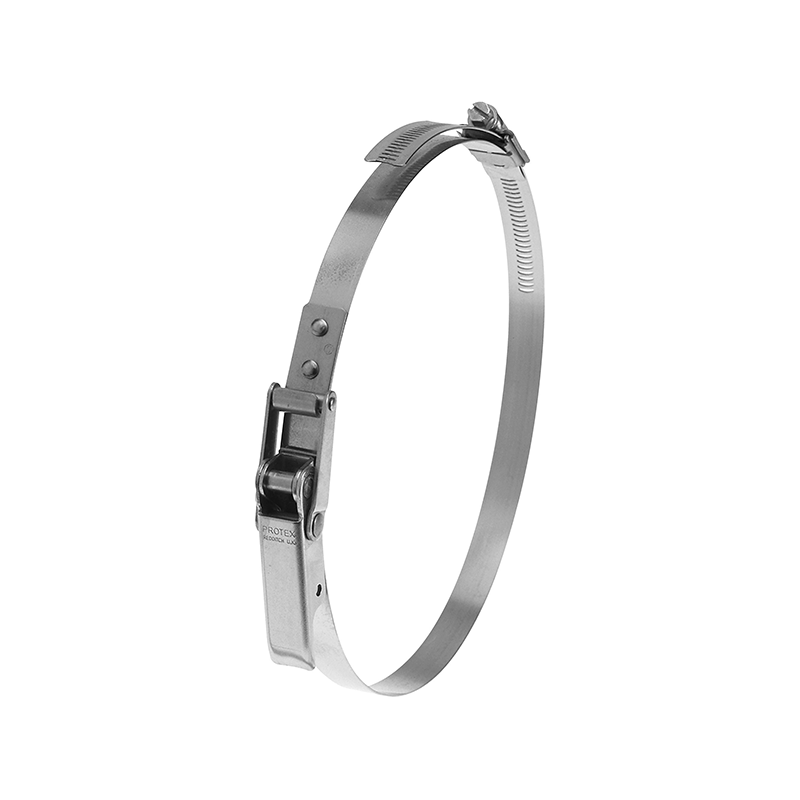

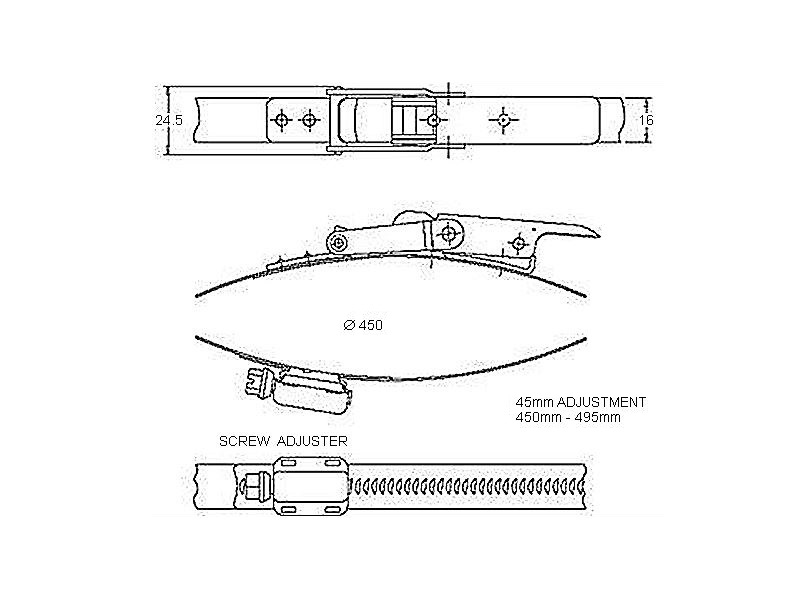

Complete hose clamp, stainless steel, Diameter range: 450-495mm, Load class= High
MT107100
Complete hose clamp manufactured in stainless steel. Diameter range is 450-495mm. The load class is High. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
Load class
High
Material
AISI 304
Material type
Stainless steel
Maximum work load (Tensile strenght)
50% af brudstyrken
Type
Screw adjusting and toggle latch
Breakage load (Ultimate stress) in kg
450
Diameter, min.
450
Diameter, max.
495
Drejningsmoment i N.m
0
Gevindlængde i mm
0
Thickness in mm
0
Long description
Complete hose clamp manufactured in stainless steel. Diameter range is 450-495mm. The load class is High. Hose clamp is with worm drive. We offer many different products, so if you cannot find a product which meet your requirements, then please contact us.
