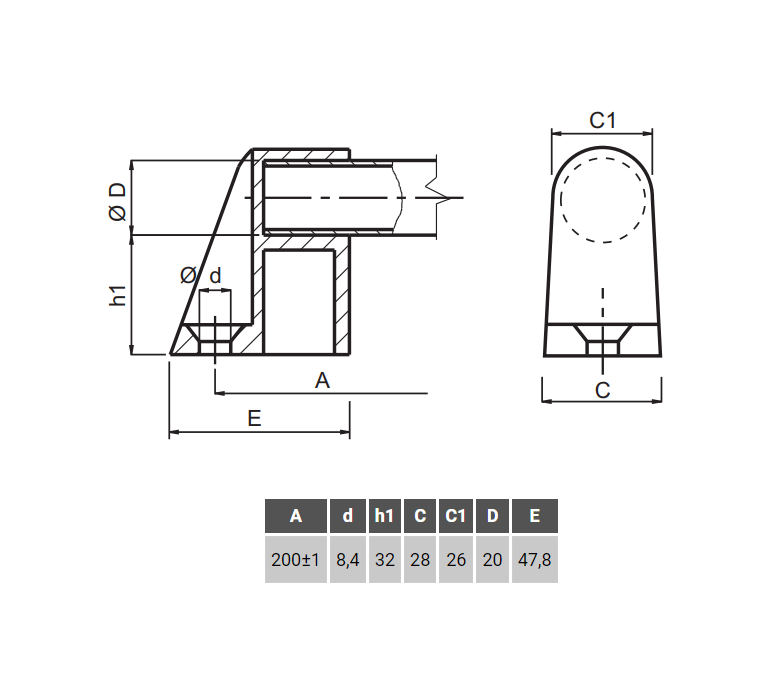

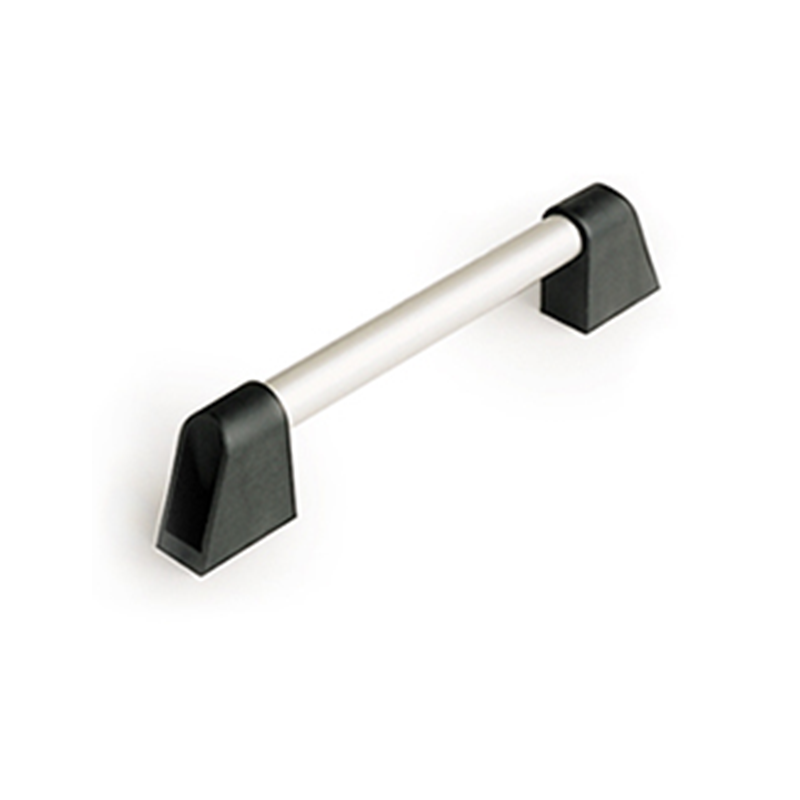

Bridge handle, aluminium, L=223, B=28, H=55
MT104072
Bridge handle in aluminium with a length of 223 mm, a width of 28 mm and a height of 55 mm. End stays are made of glass fiber reinforced polyamide. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Hole type
Countersunk
Material type
Aluminium
Mounting type
Below
Surface finish
Anodized
Thread length in mm
0
Hole diameter in mm
8.4
Hole distance in mm
200
Height in mm
55
Internal height in mm
32
Length in mm
223
Thickness in mm
20
Long description
Bridge handle in aluminium with a length of 223 mm, a width of 28 mm and a height of 55 mm. End stays are made of glass fiber reinforced polyamide. We can deliver a wide range of products on request. Please contact us for more information.
