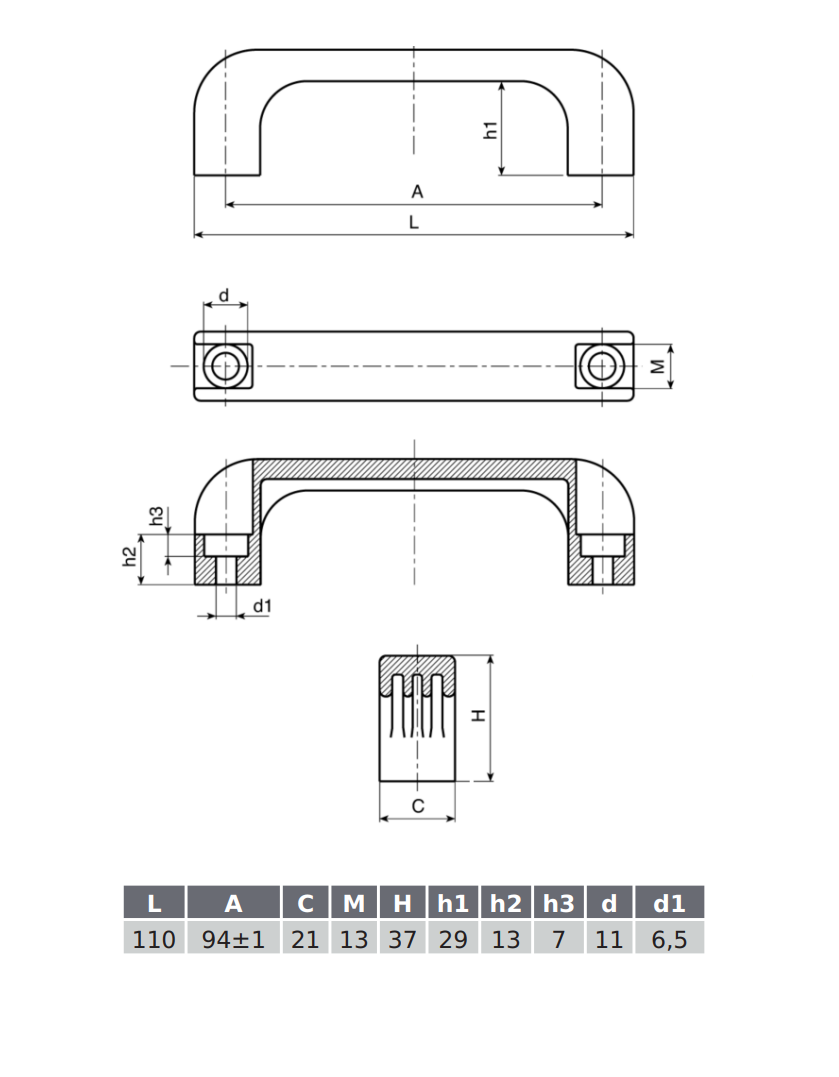

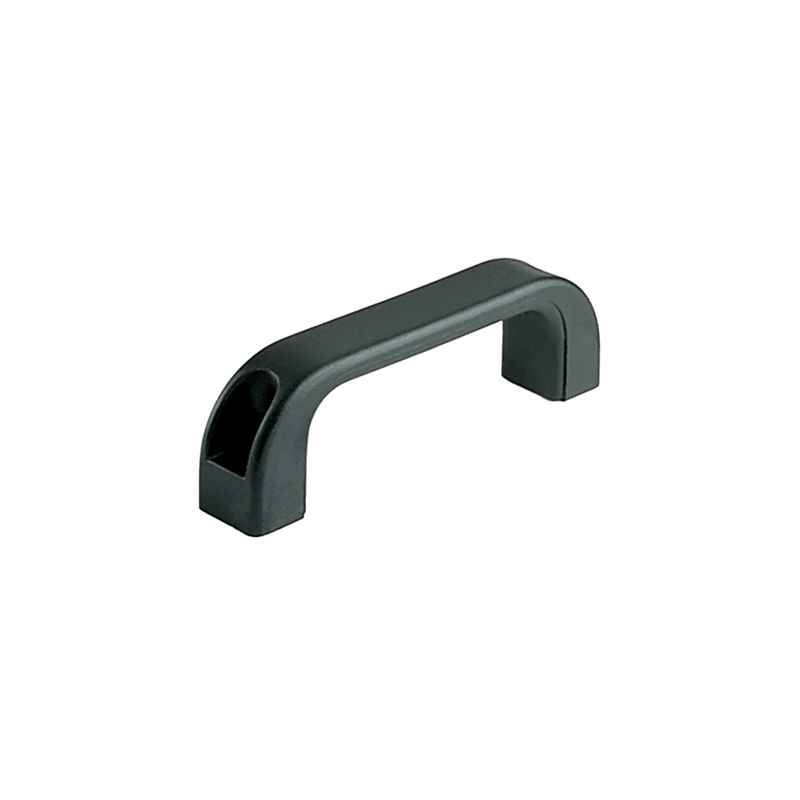

Bridge handle, glass fiber reinforced polyamide, L=110, B=21, H=37
MT104058
Bridge handle in glass fiber reinforced polyamide with a length of 110 mm, a width of 21 mm and a height of 37 mm. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Hole type
For cylinder screw
Material type
Glass fiber reinforced polyamide
Mounting type
Below
Thread length in mm
0
Hole diameter in mm
6.5
Hole distance in mm
94
Height in mm
37
Internal height in mm
29
Length in mm
110
Thickness in mm
0
Long description
Bridge handle in glass fiber reinforced polyamide with a length of 110 mm, a width of 21 mm and a height of 37 mm. We can deliver a wide range of products on request. Please contact us for more information.
