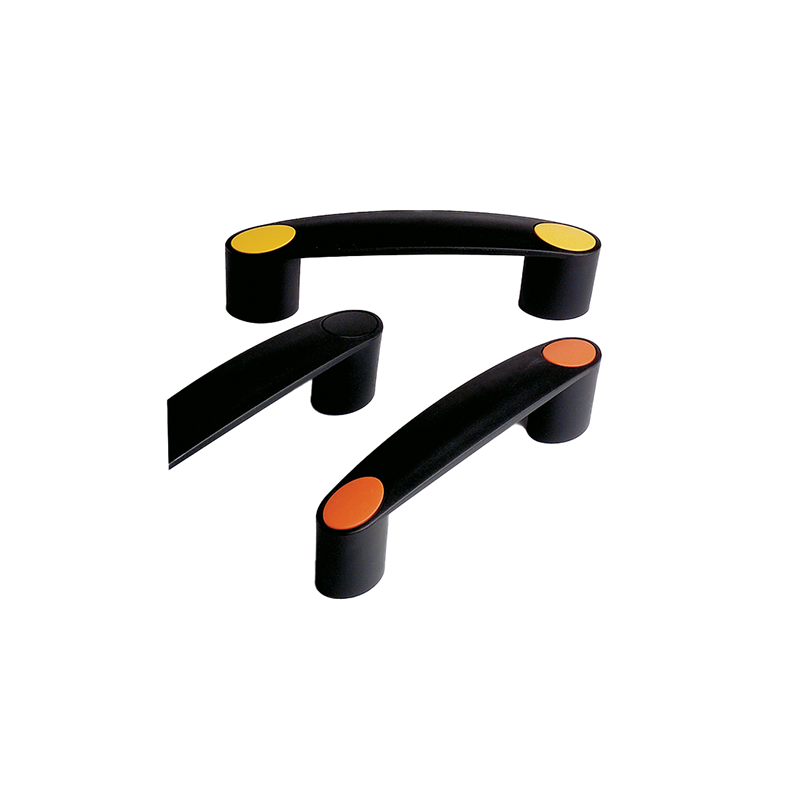

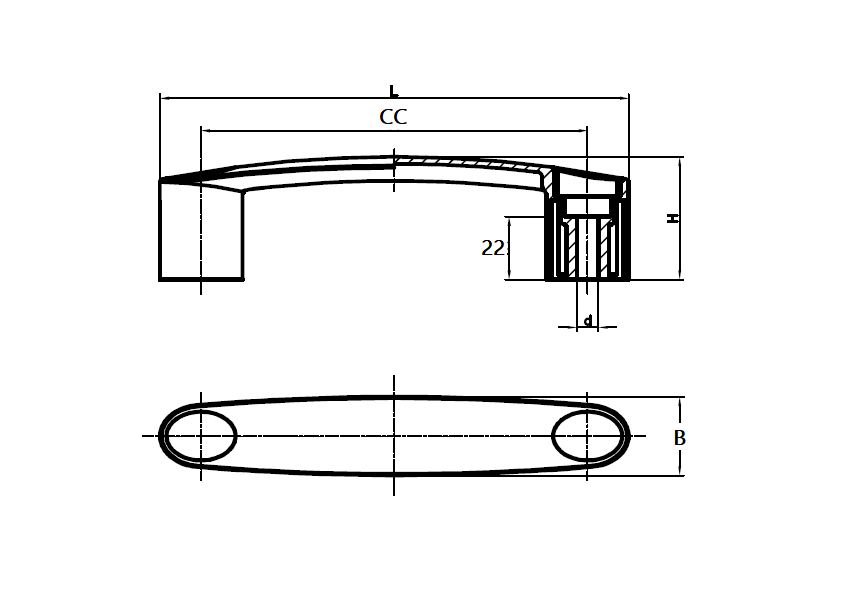

Bridge handle, glass fiber reinforced polyamide, L=163, B=29, H=45
MT104046
Bridge handle in glass fiber reinforced polyamide with a length of 163 mm, a width of 29 mm and a height of 45 mm. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Orange
Hole type
For cylinder screw
Material type
Glass fiber reinforced polyamide
Mounting type
Below
Thread length in mm
0
Hole diameter in mm
8.5
Hole distance in mm
132
Height in mm
45
Internal height in mm
0
Length in mm
163
Thickness in mm
0
Nettovægt
0.054
Varekode
3925901000
Lande-/områdekode for oprindelse
ES
Long description
Bridge handle in glass fiber reinforced polyamide with a length of 163 mm, a width of 29 mm and a height of 45 mm. We can deliver a wide range of products on request. Please contact us for more information.
