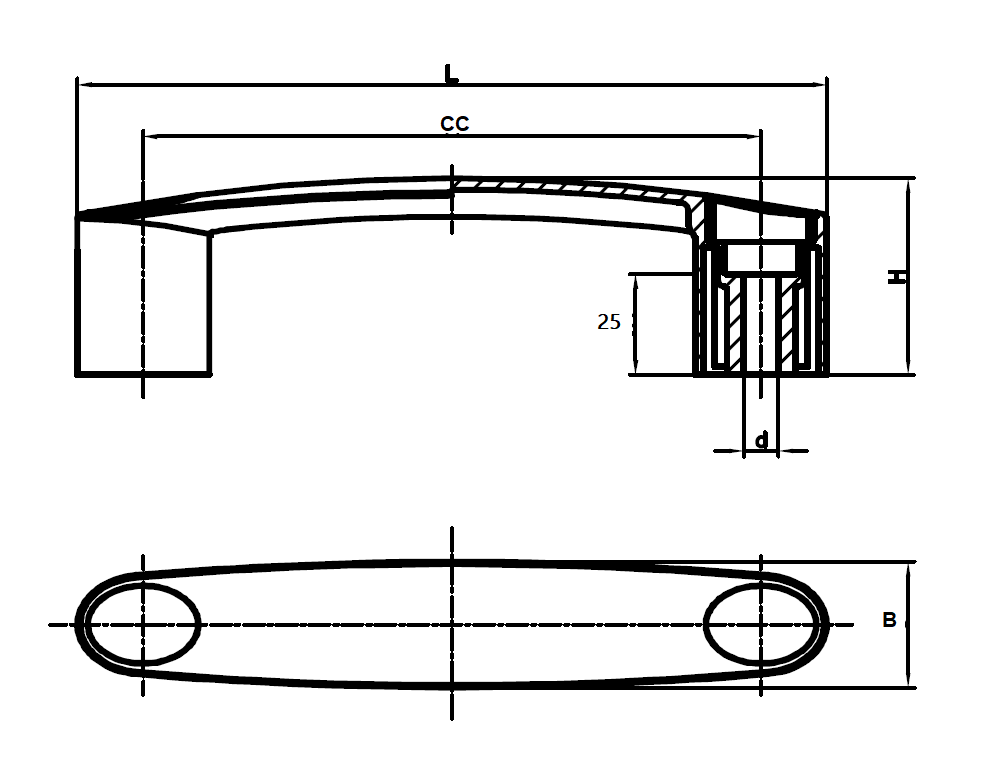

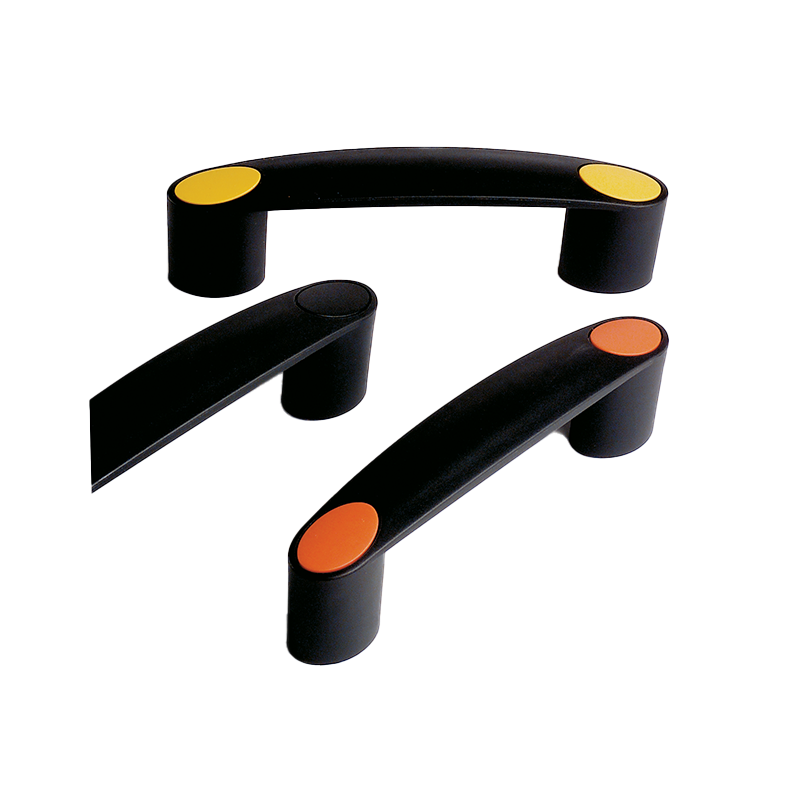

Bridge handle, glass fiber reinforced polyamide, L=181, B= 31, H= 48
MT104047
Bridge handle in glass fiber reinforced polyamide with a length of 181 mm, a width of 31 mm and a height of 48 mm. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Hole type
For cylinder screw
Material type
Glass fiber reinforced polyamide
Mounting type
Below
Thread length in mm
0
Hole diameter in mm
8.5
Hole distance in mm
150
Height in mm
48
Internal height in mm
0
Length in mm
181
Thickness in mm
0
Long description
Bridge handle in glass fiber reinforced polyamide with a length of 181 mm, a width of 31 mm and a height of 48 mm. We can deliver a wide range of products on request. Please contact us for more information.
