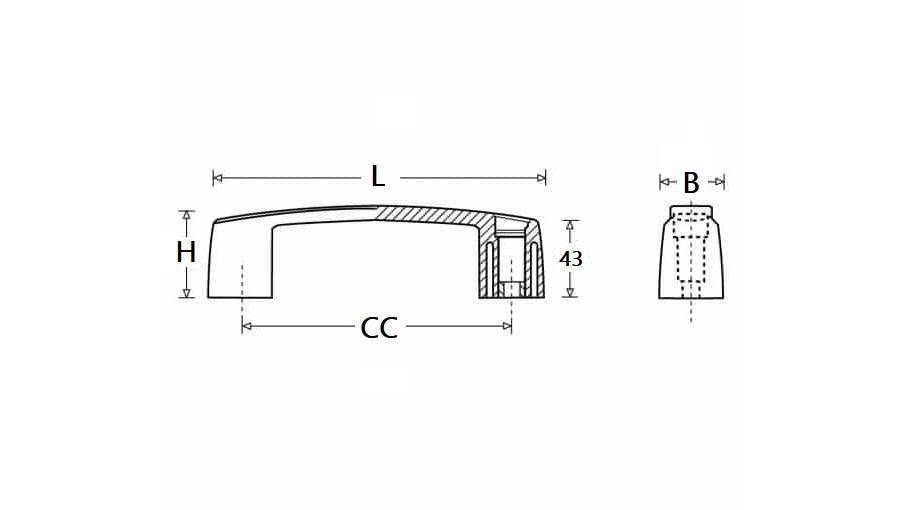

Bridge handle, glass fiber reinforced polyamide, L=213, B=35, H=50
MT105108
Bridge handle in glass fiber reinforced polyamide with a length of 213 mm, a width of 35 mm and a height of 50 mm. 15% glasfiber. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Hole type
For cylinder screw
Material
PA6
Material type
Glass fiber reinforced polyamide
Mounting type
Below
Thread length in mm
0
Hole diameter in mm
8.5
Hole distance in mm
179
Height in mm
50
Internal height in mm
0
Length in mm
213
Thickness in mm
0
Long description
Bridge handle in glass fiber reinforced polyamide with a length of 213 mm, a width of 35 mm and a height of 50 mm. 15% glasfiber. We can deliver a wide range of products on request. Please contact us for more information.
