Bridge handle, polyamide, L=116, B=40, H=35
MT107427

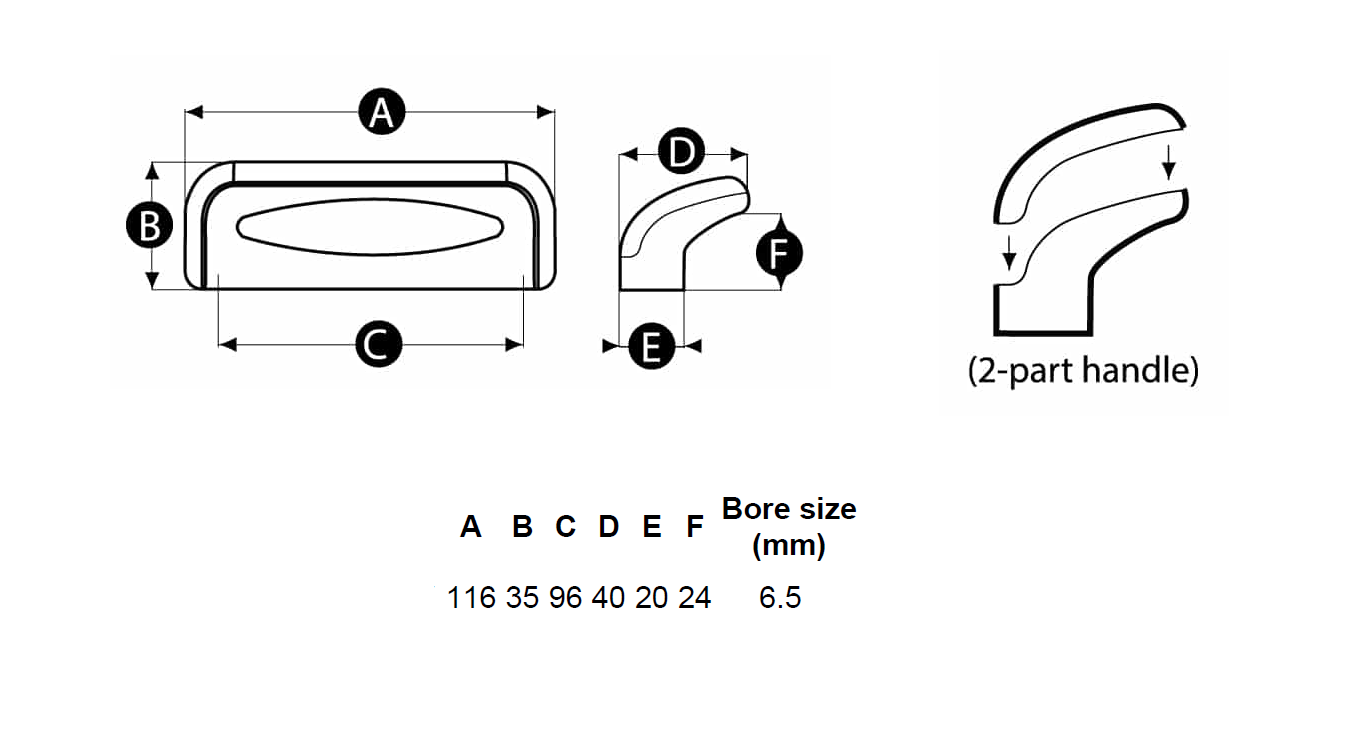

Bridge handle in polyamide with a length of 116 mm, a width of 40 mm and a height of 35 mm. Two piece: base and cover. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Hole type
For hexagon screw
Material
PA6
Material type
Polyamide
Mounting type
Below
Thread length in mm
0
Hole diameter in mm
6.5
Hole distance in mm
96
Height in mm
35
Internal height in mm
24
Length in mm
116
Thickness in mm
0
Nettovægt
0.043
Varekode
8302490099
Lande-/områdekode for oprindelse
CN
Long description
Bridge handle in polyamide with a length of 116 mm, a width of 40 mm and a height of 35 mm. Two piece: base and cover. We can deliver a wide range of products on request. Please contact us for more information.
