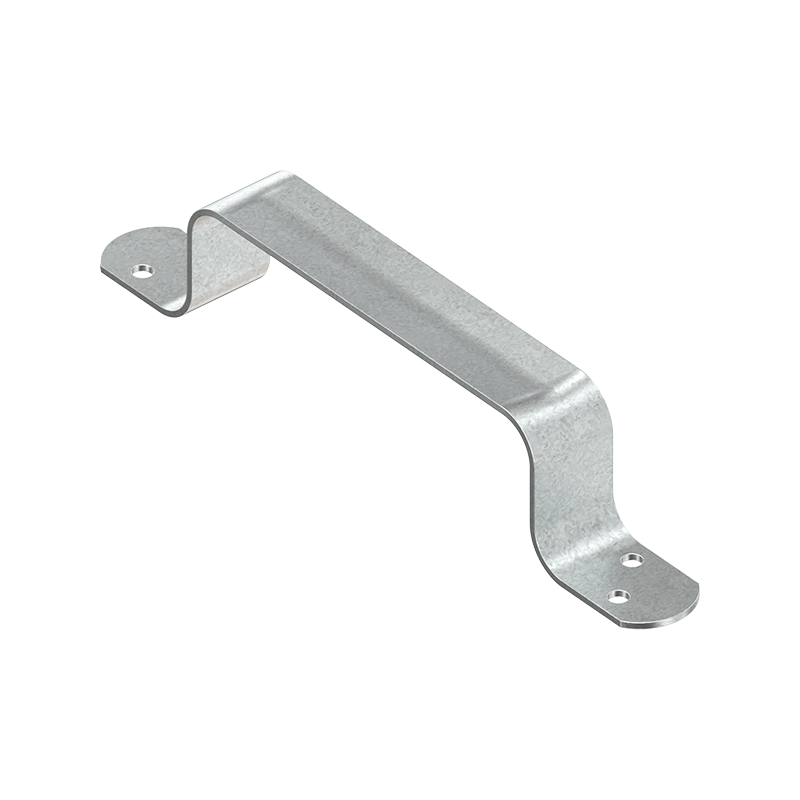

Bridge handle, steel, L=152, B= 18, H= 30
MT107381

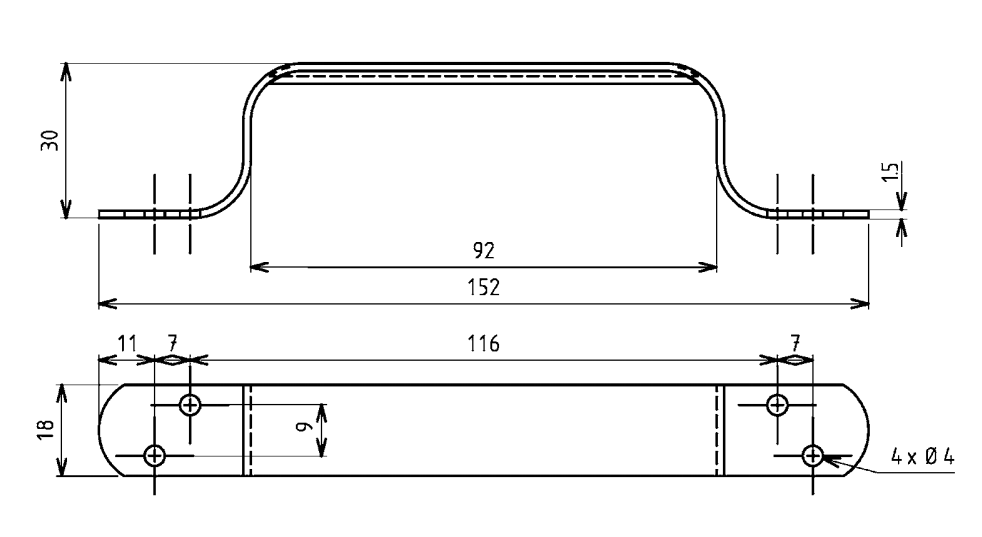

Bridge handle in steel with a length of 152 mm, a width of 18 mm and a height of 30 mm. The shortest hole distance is 116mm. We can deliver a wide range of products on request. Please contact us for more information.
Hole type
Through-going
Material type
Steel
Mounting type
Below
Surface finish
Electro zinc plated
Thread length in mm
0
Hole diameter in mm
4
Hole distance in mm
130
Height in mm
30
Internal height in mm
0
Length in mm
152
Thickness in mm
0
Long description
Bridge handle in steel with a length of 152 mm, a width of 18 mm and a height of 30 mm. The shortest hole distance is 116mm. We can deliver a wide range of products on request. Please contact us for more information.
