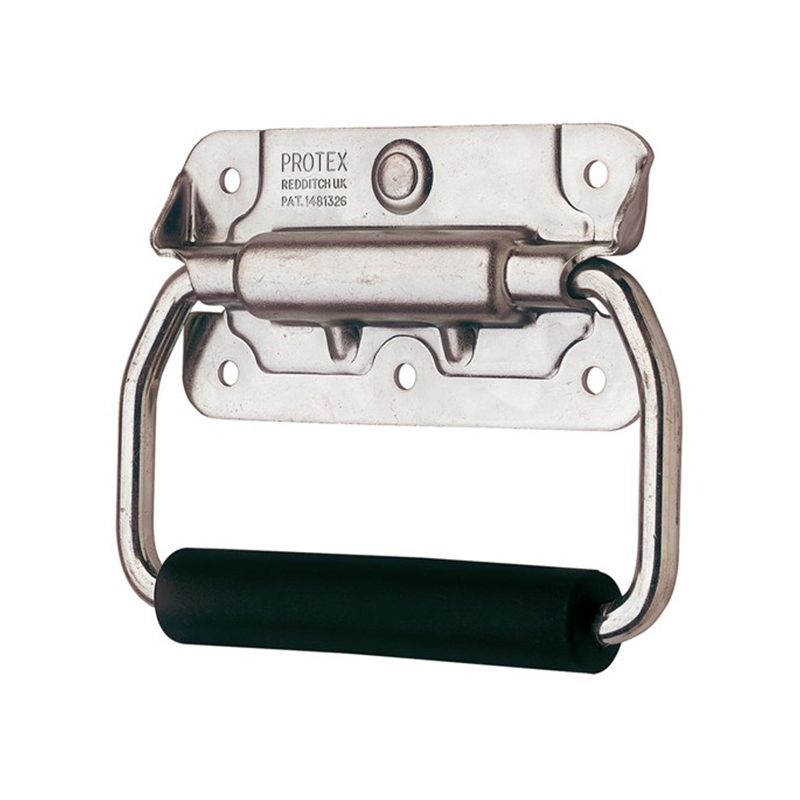

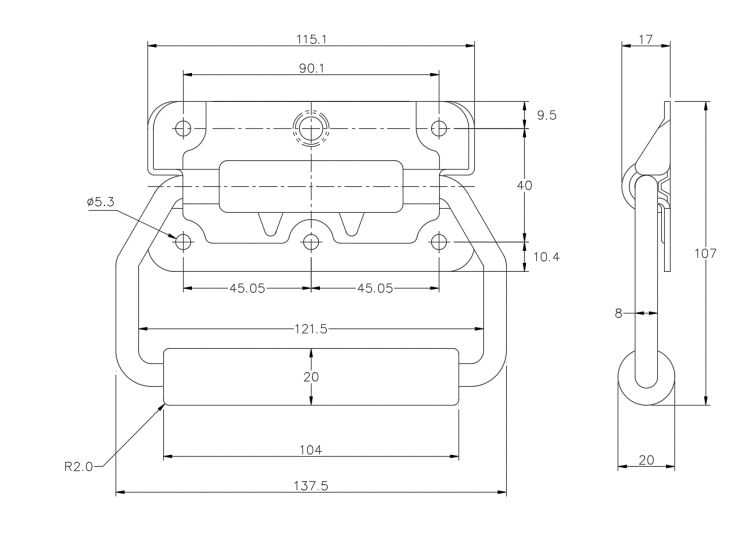

Flip handles, stainless steel, spring-loaded, H= 107 mm, B= 137,5 mm
MT108981
Flip handle in stainless steel with spring-load. The height is 107 mm and the width is 137,5 mm. We can deliver a wide range of products on request. Please contact us for more information.
Dybde i mm
17
Fjedervirkning
Yes
Gummigreb
Yes
Material type
Stainless steel
Stop angle in °
90
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
450
Hole diameter in mm
5.3
Height in mm
107
Long description
Flip handle in stainless steel with spring-load. The height is 107 mm and the width is 137,5 mm. We can deliver a wide range of products on request. Please contact us for more information.
