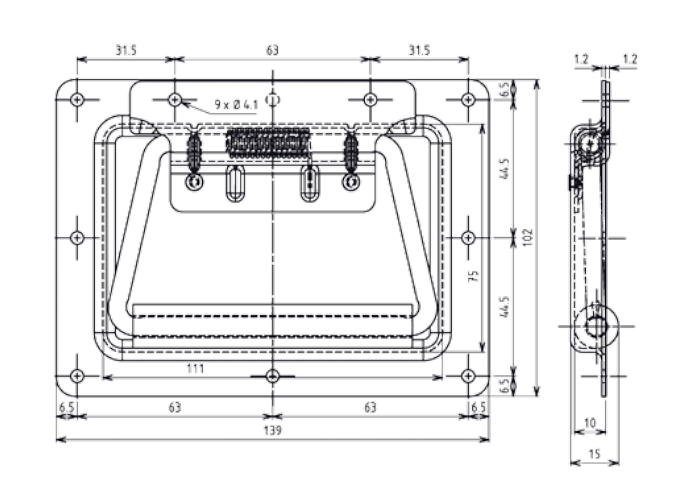

Flip handles, steel, spring-loaded, recessed, H= 102 mm, B= 139 mm
MT107396
Flip handle in steel with spring-load and a recess. The height is 102 mm and the width is 139 mm. Electro zinc plated steel DS plus Top Coat. We can deliver a wide range of products on request. Please contact us for more information.
Depth
15
Spring-loaded
Yes
Rubber grip
Yes
Material type
Steel
Surface finish
Electro zinc plated
Stop angle
90
Recessed
Yes
Breakage load (Ultimate stress) in kg
0
Hole diameter in mm
4.1
Height in mm
102
Long description
Flip handle in steel with spring-load and a recess. The height is 102 mm and the width is 139 mm. Electro zinc plated steel DS plus Top Coat. We can deliver a wide range of products on request. Please contact us for more information.
