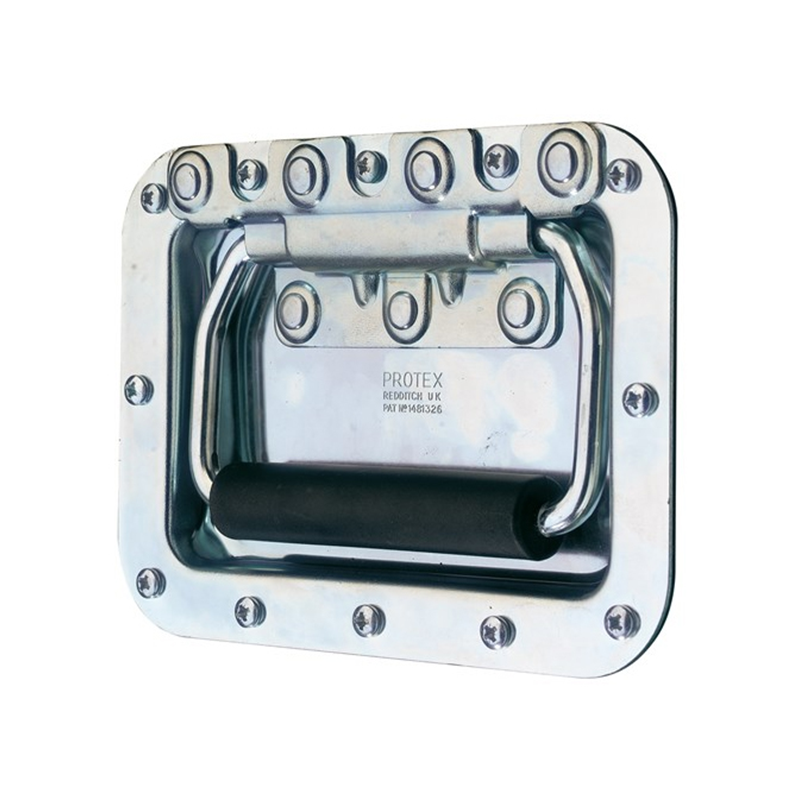

Flip handles, steel, spring-loaded, recessed, H= 127 mm, B= 181 mm
MT108975
Flip handle in steel with spring-load and a recess. The height is 127 mm and the width is 181 mm. We can deliver a wide range of products on request. Please contact us for more information.
Dybde i mm
22
Fjedervirkning
Yes
Gummigreb
Yes
Material type
Steel
Surface finish
Electro zinc plated
Stop angle in °
90
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
Yes
Breakage load (Ultimate stress) in kg
300
Hole diameter in mm
5.1
Height in mm
127
Long description
Flip handle in steel with spring-load and a recess. The height is 127 mm and the width is 181 mm. We can deliver a wide range of products on request. Please contact us for more information.
